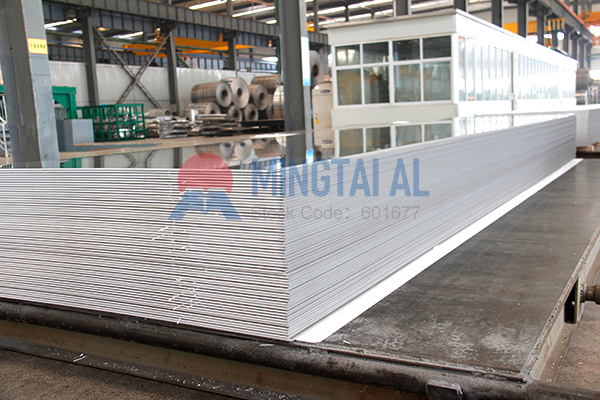

Maximize Performance & Budget: The 3004 Aluminum Sheet for Roofing Panel

In modern construction, metal roofing has rapidly become the preferred choice for industrial plants, commercial buildings, and even high-end residences due to its lightweight nature, design flexibility, environmental sustainability, and exceptional durability. Among various metal materials, aluminum alloy roofing panels stand out for their irreplaceable advantages. The 3004 aluminum sheet for roofing panel is widely recognized as the benchmark material in this application.

Why is 3004 Aluminum Alloy Exceptionally Suited for Roofing?

The 3004 aluminum sheet belongs to the aluminum-manganese-magnesium alloy series. Its core value stems from its scientific composition. The addition of manganese (Mn) significantly enhances its strength and corrosion resistance, while magnesium (Mg) further improves the material’s overall mechanical properties. This combination allows 3004 sheets to excel in demanding roofing environments:

1.  Exceptional Weather Resistance & Longevity:The 3004 alloy naturally forms a dense oxide layer, providing innate resistance to atmosphere, rainwater (including acid rain), and UV exposure. Its service life can easily reach 30-50 years, far surpassing ordinary coated steel sheets and significantly reducing long-term maintenance costs.
2.  Ideal Balance of Strength and Stiffness:It offers a much higher yield strength than pure aluminum series (e.g., 1xxx), effectively resisting wind pressure, snow loads, and deformation during installation and maintenance, ensuring long-term structural stability and safety.
3.  Excellent Formability and Workability:This alloy possesses good deep-drawing and roll-forming capabilities, allowing it to be easily shaped into various popular profiles like standing seam, corrugated, or trapezoidal panels to meet diverse architectural aesthetic needs.
4.  Lightweight and Cost-Effective:Aluminum’s density is only one-third that of steel, resulting in a lighter roof system that reduces the load on the primary structure and lowers transportation and installation costs. 3004 provides the required performance while maintaining excellent cost efficiency.

Key Considerations for Customer Selection and Application

Professional clients typically focus on several core questions when selecting this material for roofing:

*   How to Determine the Right Thickness?

The common thickness range for roofing applications is 0.5mm to 1.2mm. For most industrial and commercial projects, 0.7mm-0.9mm offers an economical and safe choice. The specific thickness should be calculated precisely based on purlin spacing and local wind/snow load codes.

*   What Surface Treatment Should Be Chosen?

For optimal durability and aesthetics, a coating is highly recommended. PVDF (Fluorocarbon) coating represents the highest standard, with superior weatherability ensuring color retention for over 25 years. HDPE (High-Durability Polyester) coating is a cost-effective alternative suitable for most environments. The primer should involve chromate or chromium-free pre-treatment to ensure coating adhesion.

*   How Does 3004 Compare to Color-Coated Steel or 5052 Aluminum?

*   Vs. Color-Coated Steel (Aluzinc): 3004 aluminum holds an overwhelming advantage in corrosion resistance—it does not rust—and is lighter. Although the initial material cost may be slightly higher, its long lifespan and low maintenance make its total lifecycle cost more advantageous.

*   Vs. 5052 Aluminum: 5052 offers slightly higher strength but at a significantly higher cost. For the vast majority of roofing projects, the strength of 3004 is fully sufficient. Its superior balance of formability, corrosion resistance, and cost makes it a more versatile and economical choice.

*   What Key Quality Parameters Should Be Checked When Purchasing?

Always confirm: Alloy Temper (typically H14/H24, indicating a half-hard state), Thickness Tolerance, Coating Type and Thickness (e.g., ≥25μm PVDF), Mechanical Property Reports (yield strength, tensile strength), and compliance with relevant building code standards.

Reliable Quality, Rooted in Expertise — Mingtai Aluminum

Choosing roofing material is choosing decades of peace of mind. Mingtai Aluminum has decades of deep expertise in aluminum processing. We understand the critical importance of material reliability for building safety. Every coil and sheet of our specialized 3004 aluminum sheet for roofing panel is produced from high-quality ingots through precision rolling and stringent process control. We ensure uniform composition, stable performance, and flatness, providing a solid and reliable foundation for your project. We are not just a material supplier but your trusted technical partner.

Brief FAQ on 3004 Aluminum Roofing Sheets

Q: Will 3004 aluminum corrode if directly exposed in coastal areas?

A: It has good inherent resistance. For optimal long-term protection in high-salt environments, pairing it with a PVDF coating is strongly recommended.

Q: What should be noted during installation?

A: Use compatible aluminum accessories and fasteners to prevent galvanic corrosion. Follow design specs for proper fixing and waterproof sealing.

Q: What is the minimum order quantity?

A: It varies by product spec and stock. We offer flexible solutions—please contact our sales team for specific details.

Q: Can you provide materials meeting specific international standards?

A: Yes. We can supply products compliant with major standards like ASTM, EN, and GB, with corresponding documentation.
