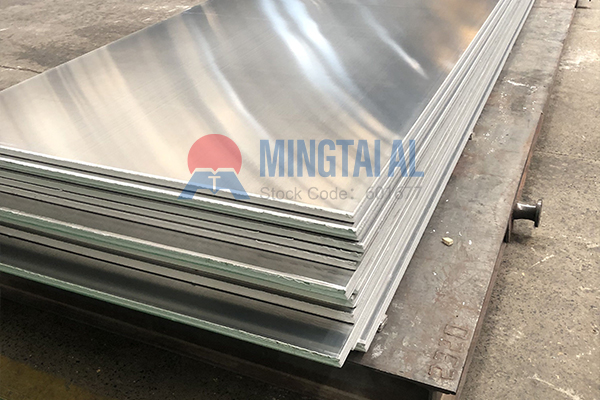

In the world of aluminum sheets, the 5083 aluminum sheet VS 5052 are both highly regarded “star products.” From an oxidation perspective, they share similarities, but their key differences lie in mechanical properties. The 5083 aluminum sheet significantly outperforms the 5052 in tensile strength and yield strength, making it more suitable for applications requiring high load-bearing capacity.
The 5052 aluminum sheet contains minimal silicon (Si) (virtually 0%), iron (Fe) at 0.45%, copper (Cu) at 0.1%, manganese (Mn) at 0.1%, magnesium (Mg) between 2.2–2.8%, chromium (Cr) at 0.15–0.35%, and zinc (Zn) at 0.1%. In contrast, the 5083 aluminum sheet consists of 0.4% Si, 0.4% Fe, 0.1% Cu, 0.3–1.0% Mn, 4.0–4.9% Mg, 0.05–0.25% Cr, and 0.25% Zn. These distinct chemical compositions give each alloy its unique performance characteristics.
The 5052 alloy offers excellent formability, corrosion resistance, weldability, fatigue strength, and moderate static strength. It is widely used in aircraft fuel tanks, oil pipes, sheet metal parts for vehicles and ships, as well as instruments, streetlight brackets, rivets, and hardware products. On the other hand, the 5083 alloy is ideal for applications demanding high corrosion resistance, good weldability, and medium strength, such as naval vessels, automotive and aircraft welded panels, pressure vessels, refrigeration units, TV towers, drilling equipment, transportation machinery, missile components, and armor.
The 5XXX series alloys, primarily composed of magnesium (3–5%), are also known as aluminum-magnesium alloys. They feature low density, high tensile strength, excellent elongation, and good fatigue strength, though they cannot be heat-treated for further strengthening. Compared to other series, aluminum-magnesium alloys are lighter in weight for the same area, making them widely used in general industries. In China, the production of 5XXX series aluminum sheets, including the 5083 aluminum sheet VS 5052, is well-established, with many high-quality manufacturers providing reliable material support. For more details on 5083 aluminum sheet suppliers, please contact: +86-17737126910.
