Among the 6xxx series aluminum alloys, 6082 T6 Aluminum Plate offers the highest strength. When structural components must endure heavy loads, dynamic impacts, or long‑term stress, many engineers turn to this alloy. The reason is straightforward: it combines high strength, good machinability, and excellent corrosion resistance. This article explains why it is a reliable choice for heavy‑duty structural machining from three perspectives—material properties, processing characteristics, and selection guidelines.
6082 belongs to the Al‑Mg‑Si family of heat‑treatable aluminum alloys. After T6 heat treatment, its strength ranks among the best in the 6xxx series:
– Tensile strength: typically reaches above 310 MPa (typical values vary slightly with thickness)
– Yield strength: approximately 240–270 MPa (depending on plate thickness and test standards)
– Brinell hardness: about 95 HB, with fatigue limits exceeding 90 MPa
A direct comparison with 6061 T6 is more revealing:
– 6082 T6 has about 10–18% higher tensile strength than 6061 T6
– For representative values: 6082 T6 ~310 MPa, 6061 T6 ~260 MPa
At the same thickness, 6082 can carry a greater load. The key compositional difference lies in the addition of manganese (Mn), which refines grain structure and enhances toughness and stability.
Additionally, its density is approximately 2.7 g/cm³—only one‑third that of steel—yet its strength approaches that of ordinary structural steel. For projects requiring weight reduction without sacrificing load capacity, this is a highly attractive combination.
In both T6 and T651 tempers, 6082 exhibits good machinability. Specific advantages include:
– Chips break easily, resulting in a smooth surface finish
– Low tool wear during CNC milling, drilling, and tapping
– Suitable for one‑step forming of complex structural parts, reducing secondary operations
For welding, 6082 supports MIG and TIG processes:
– Weld joint strength typically reaches over 80% of the base material
– Note that strength in the heat‑affected zone does decrease
– For large frames, common design approaches are “welding with local reinforcement” or bolted connections
6082 T6 aluminum plates are used across many heavy‑duty and precision manufacturing fields:
– Transportation: automotive crash beams, chassis components, battery trays, high‑speed rail bodies, ship decks and hull structures
– Structural engineering: bridge components, crane booms, tower structures, heavy truck bodies
– Precision manufacturing and CNC machining: equipment frames, machine bases, robotic arms, precision molds
In marine environments (e.g., salt‑spray tests), 6082 shows outstanding corrosion resistance—a key reason it is specified for ships and coastal facilities.
This is a common question. The difference between T6 and T651 lies in internal stress treatment:
– T6: Maximum strength, but no dedicated stress relief. Suitable for thin plates or simple parts with minimal machining.
– T651: Includes a stretching stress‑relief step after T6, resulting in very low residual internal stress.
For plates thicker than 6 mm that require extensive milling, T651 is the safer choice—it minimizes post‑machining distortion and ensures flatness of the base plate.-

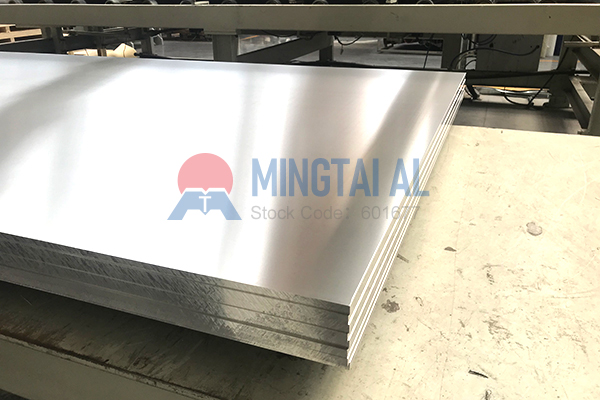

For 6082 T6 Aluminum Plate, thickness ranges from 0.3 mm to 600 mm, width from 100 mm to 3000 mm, and length from 500 mm to 16000 mm. Common supply tempers include T6, T651, T4, and O.
Returning to the original question: why is 6082 T6 often chosen for heavy‑duty structural machining? The core answer can be summed up in three points—high strength, easy machinability, and corrosion resistance. It offers outstanding load‑bearing capacity within the 6xxx series while maintaining good cutting performance and weldability. For structural parts that must balance lightweight design with reliability, this is a proven material option.
Q: Which is stronger, 6082 T6 or 6061 T6?
A: 6082 T6 typically has 10–18% higher tensile strength, making it better for heavy‑load applications.
Q: Should I choose T6 or T651 for thick plate machining?
A: For thickness over 6 mm with extensive milling, T651 is recommended because stress relief reduces distortion.
Q: Will welding reduce the strength of 6082 T6?
A: Yes, the heat‑affected zone weakens, but weld joint strength still reaches over 80% of the base material.
Q: What sizes are available for 6082 T6 aluminum plate?
A: Thickness 0.3–600 mm, width 100–3000 mm, length 500–12000 mm.
