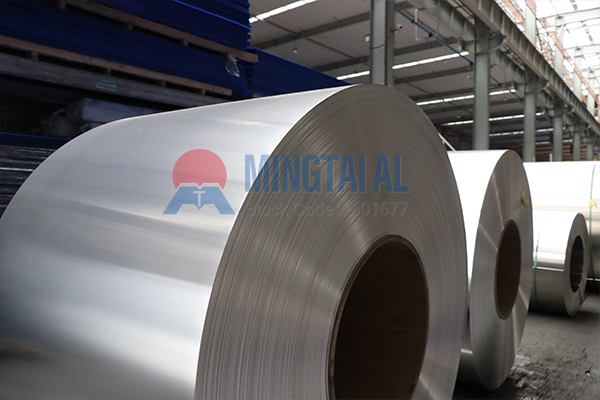

aluminum coil for cable tray

Choosing the right aluminum coil for cable tray is more than a price comparison. It affects load capacity, corrosion performance, fabrication efficiency, and long-term cost. The best choice depends on alloy, temper, dimensions, and the environment where the tray will be used.

Why Aluminum Coil Works Well for Cable Tray Fabrication

Aluminum cable trays replace steel trays in many projects for clear reasons:

– Lightweight: lower support load and easier installation.

– Corrosion resistance: the natural oxide film protects in many atmospheres.

– Good low-temperature performance: no sharp ductile-to-brittle transition in cold regions.

– EMI shielding: useful for modern power and communication systems.

As a result, power, chemical, marine, and data center projects often use aluminum coil as an important raw material for tray production. For manufacturers, formability, weldability, and dimensional consistency also affect production rhythm and final product consistency.

Core Alloys: 1060, 3003, and 5052

For aluminum coil for cable tray manufacturing, three alloys are commonly considered.

If the tray needs both load capacity and corrosion resistance, 5052 is often the first direction to evaluate. If conductivity or cost control matters more, review 1060 or 3003. For marine and high-salt-spray environments, 5052 is usually the better fit. Do not judge by a single metric alone; weigh the service environment, fabrication method, and cost together.

Temper Choice: What O, H14, and H32 Mean for Fabrication

1. O temper: softest, good for complex bending, but lower strength.

2. H14: half-hard, balanced strength and formability, suitable for general bent parts.

3. H32: balanced strength and corrosion resistance, often used for load-bearing parts.

Temper selection is not only about alloy grade. It also needs to match bend radius, punching, welding, and final load requirements. Confirming temper and process compatibility with the supplier can reduce trial and error. The same alloy in different tempers can feel very different during fabrication and perform differently in final stiffness.

Thickness and Width: Match the Part and Equipment

Covers, side panels, and bottom panels have different requirements. Load-bearing parts usually need thicker material, while covers can be thinner. Width should match shearing and bending equipment capacity.

– First, define the part function: load-bearing or protective.

– Then confirm bending, punching, and other processes.

– Finally, check thickness tolerance and width range.

Coil raw material supply usually focuses on the coil itself. Surface treatment and further processing are handled by downstream specialist manufacturers. Clarifying this early helps keep selection focused on alloy, temper, and dimensional consistency.

Fabrication and Environment: Details That Matter

During bending, pay attention to alloy temper and bend direction. During punching and cutting, control burrs. During welding, choose alloys with good weldability. For corrosive environments, 3003 or 5052 can work indoors, while 5052 is preferred for chemical, marine, and high-salt-spray conditions. Cold-climate projects can take advantage of aluminum’s low-temperature performance.

> Selection is not about the most expensive option. It is about the best match.

Three Common Selection Mistakes

1. Looking only at alloy, not temper: the same grade can differ clearly in strength and formability.

2. Looking only at price, not environment: the wrong alloy in salt spray or chemical conditions can raise maintenance cost.

3. Looking only at thickness, not tolerance: thickness tolerance affects bending consistency and final dimensions.

Put service environment, part function, fabrication process, and supply stability into one evaluation table. This makes selection more efficient and reduces repeated adjustments in production.

FAQ

Q: What alloy is most common for cable tray coils?

A: 5052 is often chosen for its balanced strength, corrosion resistance, and formability.

Q: Can 1060 be used for load-bearing parts?

A: Its lower strength makes it better suited to special electrical components.

Q: Does aluminum coil need surface treatment?

A: Most indoor applications do not require it because the natural oxide film offers protection.

Q: How do I choose thickness and temper?

A: Match them to the part function, load requirement, and fabrication process.

About Mingtai Aluminum

Henan Mingtai Aluminum supplies 1060, 3003, and 5052 aluminum coil suitable for cable tray production in a range of tempers and specifications. We focus on coil raw material supply and welcome technical discussions on alloy, temper, and dimensions.
