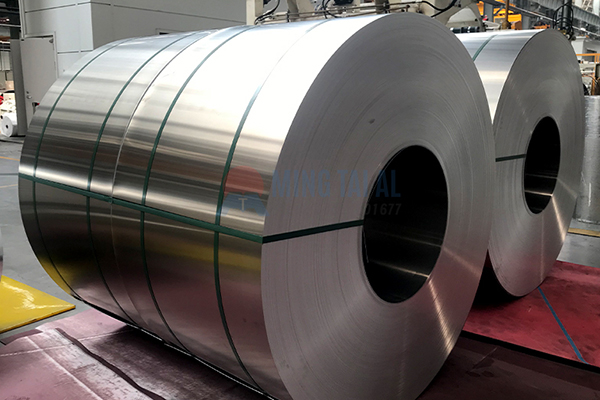

The performance of a heat sink starts with the very first meter of coil you select. As the core base material, the quality of the aluminum coil directly determines the final product’s thermal efficiency, structural strength, and production cost. Faced with numerous alloy grades and tempers on the market, how do you make a professional choice? This article breaks down the five key factors for you.
Aluminum is the absolute mainstream material for thermal applications for clear reasons:
– Excellent Thermal Conductivity: With a thermal conductivity of about 237 W/m·K, it quickly transfers heat away from the source.
– Lightweight and Cost-Effective: Its low density allows for efficient heat dissipation while controlling overall weight and cost.
– Easy to Process: It is suitable for stamping, bending, and welding, making it ideal for mass production.
This is the most critical choice. There are two main categories:
– Pure Aluminum Series (1050/1060/1070): Best thermal conductivity (>220 W/m·K). Ideal for applications demanding peak thermal performance. 1070, with higher purity, typically offers even better conductivity.
– 3003 Alloy (Al-Mn Series): Significantly stronger than pure aluminum, with good thermal conductivity (160-180 W/m·K). Excellent formability makes it the “best-value choice” for most heat sinks.
Simple advice: Choose 1070 for ultimate conductivity; choose 3003 for good strength and formability.
The temper directly impacts your production process.
– O Temper (Annealed): Excellent plasticity. Perfect for deep drawing, stretching, and other complex forming. It is the preferred choice for stamped fins.
– H14/H18 Temper (Hard): High strength and good springback. Suitable for fins requiring high rigidity or simpler shapes.
Choosing the wrong temper can lead to cracking or deformation during stamping.
– Thickness: Common range is 0.1mm to 3.0mm.
– Thin gauge (e.g., 0.2-0.5mm): Used for stamping thin, dense fins to increase surface area.
– Thick gauge (>1.0mm): Often used for heat sink bases or structural parts needing load-bearing capacity.
– Width: Choose based on the optimal width for your mill or production line. The right width maximizes material utilization and reduces trim waste.
High-quality coil should have:
– A clean surface: Free from oil stains or dust residue.
– No major defects: No significant scratches, roller marks, or corrosion spots.
Coil with high flatness ensures stable stamping and lowers rejection rates.
High-conductivity alloys (like 1070) are less strong; stronger alloys have slightly lower conductivity. Your choice must be based on the heat sink’s end use:
– Passive Heat Sinks: Can prioritize thermal conductivity (choose pure aluminum series).
– Heat Sinks Needing Load-bearing or Complex Structures: Must balance strength (choose 3003).
– High-Precision Stamping: Must prioritize material formability (O temper is the first choice).
Reliable raw materials are the foundation of stable production. When inquiring, consider:
– Availability of Mill Test Certificates (MTC): This document ensures chemical composition and mechanical properties meet standards.
– Production Consistency: Stable manufacturing processes guarantee consistent coil performance batch after batch.
– Technical Support Capability: A good supplier can provide material selection advice based on your specific process.
The race for heat sink performance begins with the raw material. Precisely matching the alloy, temper, and specifications is the first step to optimizing thermal performance and controlling overall cost.
Looking for a reliable starting point for your thermal project? Mingtai Aluminum specializes in providing high-quality aluminum coil suitable for heat sinks, from 1070 pure aluminum to 3003 alloy, in various tempers. We provide authoritative MTCs to ensure consistent performance, helping your thermal solution get off to an efficient start.
Q: What is the most common alloy for heat sink coil?
A: The 3003 alloy is the most widely used. It offers a good balance of thermal conductivity, strength, and formability. Pure aluminum 1070 is used for top-tier scenarios where conductivity is the priority.
Q: How do I decide between O temper and H temper material?
A: This is primarily determined by your manufacturing process. Complex stamping requires O temper (annealed). H14 or other hard tempers may be considered only for simple bending where fin rigidity is crucial.
Q: How can I verify the thermal performance of the coil?
A: The alloy composition is fundamental. Request a Mill Test Certificate from the supplier to ensure the aluminum purity or manganese content meets the standard. The internal purity and structural uniformity of the material are guaranteed by the rolling mill’s process.
Q: Can you provide materials that meet environmental requirements?
A: Yes. Our standard products comply with common environmental directives like RoHS. If you have specific certification needs, please state them clearly when inquiring.
