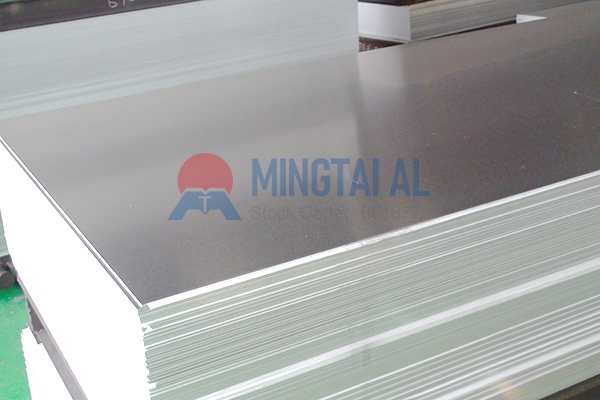

How to Choose the Right Aluminum Sheet for Heat Exchanger Fins?

In modern industry and daily life, heat exchangers act as the “heart” of systems such as air conditioning, refrigeration, automobiles, and data centers. Their performance directly determines energy efficiency and operational costs. Fins, as the core component that expands the heat transfer area and enhances efficiency, rely heavily on material selection. A high-quality aluminum alloy fin material must achieve a perfect balance between high thermal conductivity, excellent formability, good brazeability, and corrosion resistance.

Key Properties of an Ideal Fin Material

Not all aluminum sheets are suitable for manufacturing fins. To meet demanding operating conditions, the material must possess the following key characteristics:

1.  High Thermal Conductivity: This is fundamental. The higher the thermal conductivity, the faster the heat transfer, leading to improved system energy efficiency.
2.  Excellent Formability: Fins need to be stamped at high speeds into complex shapes like corrugations and louvers. The material must have deep-drawing properties to prevent cracking or wrinkling during the stamping process.
3.  Good Brazability: Under the high temperatures of brazing furnaces, the material must maintain structural stability, resist overheating or collapsing, and bond perfectly with the brazing filler to form strong joints.
4.  Superior Corrosion Resistance: It must resist erosion from moisture, condensation, and specific chemicals, ensuring long-term reliability and durability throughout the product’s lifecycle.
5.  Adequate Strength: While meeting formability requirements, it needs sufficient strength to withstand the brazing process and operational pressure, preventing deformation.

Analysis of Common Aluminum Alloy Grades

3003 Aluminum Sheet: A Common Choice for Heat Exchanger Fins

Among various aluminum grades, the 3003 aluminum sheet stands out due to its unique composition. As a representative of the aluminum-manganese alloy series, its advantages include:

– Enhanced Corrosion Resistance: The addition of manganese forms a dense oxide film, resisting erosion from atmospheric, moisture, and weak acid-base environments, making it ideal for coastal or chemical applications.

– Lightweight Advantage: With a density only one-third that of copper, it significantly reduces overall equipment weight, improving transportation and installation efficiency.

– Process-Friendly: Excellent ductility supports the forming of complex fin structures, such as corrugated or serrated designs for efficient heat transfer, while meeting welding and brazing requirements.

Compared to pure aluminum, the 3003 alloy offers significantly improved strength, enabling it to withstand stress from long-term vibration or thermal expansion and contraction, reducing maintenance frequency.

Mingtai Aluminum: Your Trusted Partner for Fin Materials

Choosing a material supplier is as important as selecting the material itself. Mingtai Aluminum, a leading manufacturer of aluminum sheet, strip, and foil in China, deeply understands the stringent requirements of the heat exchanger industry.

The fin stock we provide offers the following core advantages:

– Precise Alloy Formulation: Our aluminum foils, including grades like 3003, 3103, and 1100, are produced with precise composition control and consistent performance, ensuring batch-to-batch uniformity.

– Superior Flatness and Thickness Control: Utilizing advanced rolling mills, we produce ultra-thin (down to 0.08mm), uniform, and flat aluminum foil, providing the foundation for your high-speed stamping processes and reducing rejection rates.

– Excellent Surface Quality: The material features a clean, oil-free, and scratch-free surface, ensuring the quality of subsequent hydrophilic coating applications or brazing.

– Strong Customization Capability: We offer comprehensive technical support and customized solutions regarding alloy temper, thickness, width, and surface treatment, tailored to your specific process and performance needs.

Our products are widely used in refrigeration, home appliances, automotive, and other sectors, serving as a long-term stable supplier for many renowned heat exchanger manufacturers.

Contact Mingtai Aluminum’s technical team today to get expert advice on selecting the most suitable aluminum sheet for heat exchanger fins for your project and request free samples. Experience the performance boost that comes with professional quality!
