The 5086 aluminum sheet is a "protective-type" aluminum alloy specifically designed for harsh environments. It uses magnesium to enhance structural toughness and manganese to improve rust resistance, forming a natural "protective shield."
The 5086 aluminum sheet is a "protective-type" aluminum alloy specifically designed for harsh environments. It uses magnesium to enhance structural toughness and manganese to improve rust resistance, forming a natural "protective shield." Its surface oxide film can self-repair minor scratches, resisting seawater erosion, industrial acid fumes, and extreme temperature fluctuations, making it particularly suitable for humid, high-salt, or low-temperature scenarios. It is 60% lighter than steel yet capable of withstanding high-intensity impacts, offering both durability and cost-effectiveness in applications such as shipbuilding and chemical equipment.
|
Alloy |
5086 aluminum sheet sheet |
|
Temper |
O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321,etc. |
|
Thickness(mm) |
0.15-600 |
|
Width(mm) |
100-2650 |
|
Length(mm) |
500-16000 |
|
Surface treatment |
Rolled, patterned aluminum sheet |
|
Package |

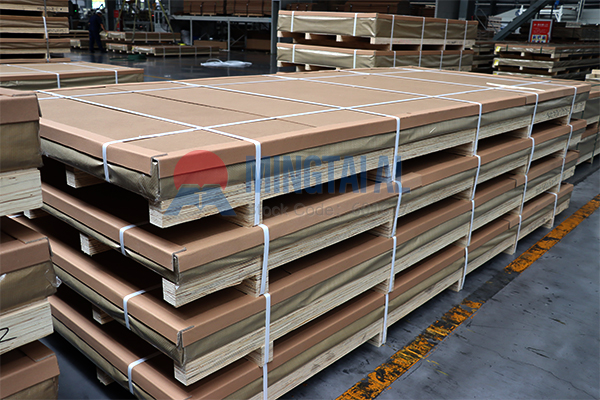

Export packaging (protective film, interleaved paper) |
|
Certificate |
CCS, DNV, ABS, BV |
|
Application |
Automobiles, ships, oxidizing materials, fuel tank materials, door panels, etc. |
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Ti |
Zr |
Al |
|
5086 |
0.40 |
0.50 |
0.10 |
0.20-0.70 |
3.50-4.50 |
0.05-0.25 |
- |
0.25 |
0.15 |
- |
Remainder |
No rust after 3 years of seawater immersion; minimal maintenance required during rainy seasons, saving labor costs.
Half the weight of steel but capable of bearing the same load, reducing equipment energy consumption and transportation costs.
Remains non-brittle even at -40°C, ideal for northern engineering and polar expedition equipment.
Resistant to cracking during bending and welding.
Used in roofing, siding, storage tanks, and cooking utensils.
"We build coastal fishing boats, and previously, steel sheets would rust through in just six months, with welds constantly cracking—requiring frequent repairs. After switching to 5086 aluminum sheets, the hull showed no rust even after two years in the waves, and the welds remained intact! Even better, the lighter weight cut fuel consumption by 20% and increased speed. Now, the crew praises the deck’s anti-slip texture for making work much safer." — A fishing boat manufacturer owner
— Procurement Manager, Automotive Manufacturing Company
