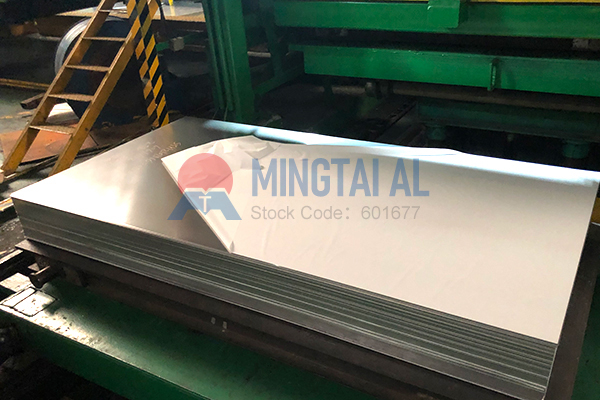

In the world of high-voltage power transmission, Gas-Insulated Switchgear (GIS) is critical. It seals all high-voltage components within a metal enclosure filled with SF6 gas, prized for its compact size, high reliability, and resistance to environmental factors. The material chosen for the GIS shell is the first line of defense, directly determining the equipment’s lifespan, safety, and performance. When it comes to meeting the stringent demands of these applications, 5754 Aluminum for GIS Shell has emerged as the premier material solution.
These enclosures face harsh conditions—from salt spray in coastal areas to industrial pollution, internal gas pressure, and the need for electromagnetic shielding. The shell material must excel in corrosion resistance, formability, strength, weldability for a tight seal, and light weight. Among various options, 5754 aluminum alloy stands out for its balanced performance.
5754 aluminum is an aluminum-magnesium alloy, part of the renowned “rust-proof” aluminum family. Its properties seem tailor-made for critical enclosures.
The core strength of 5754 aluminum is its resistance to corrosion, particularly against stress corrosion cracking. This is vital for GIS enclosures exposed to moisture, salt spray, or industrial atmospheres. It effectively prevents the shell from thinning or perforating over time, eliminating the risk of SF6 gas leakage and ensuring decades of reliable operation.
GIS shells often have complex shapes that require deep drawing and bending. 5754 aluminum sheet offers great plasticity and deep-drawing properties, allowing it to be easily formed into intricate, sealed structures. It also provides higher strength than other common alloys, enabling it to withstand internal gas pressure and external loads, striking a perfect balance between formability and structural integrity.
The integrity of a GIS unit depends on a perfect seal. Aluminum Alloy 5754 welds exceptionally well using methods like TIG or MIG welding. This results in high-quality, strong, and leak-proof welds, which are essential for creating a fully sealed, maintenance-free GIS enclosure.
The benefits of 5754 aluminum extend beyond electrical enclosures. Its corrosion resistance, light weight, and strength also make it an ideal material for ventilation and exhaust duct systems in factories and shopping malls.
* It resists moisture and chemical corrosion in demanding environments, offering a much longer life than ordinary steel.
* Its light weight simplifies installation and support requirements in commercial buildings.
* Excellent weldability ensures airtight connections throughout the ductwork system.
How does 5754 compare to other common aluminum alloys like 5052 and 6061?
* Vs. 5052 Aluminum: While 5052 also offers good corrosion resistance and formability, 5754 aluminum has a higher magnesium content, giving it greater strength. This makes it more suitable for large, high-voltage GIS shells that need to handle more pressure.
* Vs. 6061 Aluminum: 6061 can be heat-treated for very high strength, but its corrosion resistance and formability—especially its weldability—are generally inferior to 5754. For applications where sealing is the top priority, 5754 aluminum is the more specialized and reliable choice.
It’s clear that 5754 Aluminum for GIS Shell and industrial ductwork is a reliable, economical, and high-performance solution. However, achieving this performance in your final product depends on high-quality, consistent raw materials.
Mingtai Aluminum, a leading aluminum rolling manufacturer in China, understands the critical needs of high-end equipment and construction. Our 5754 aluminum sheet and coil are produced with strict control over composition and process, ensuring:
* Consistent Composition: Guaranteeing uniform mechanical properties and corrosion resistance.
* Superior Flatness and Dimensional Accuracy: Facilitating high-precision automated processing.
* Excellent Surface Quality: Meeting strict requirements for coating and appearance.
We have a proven track record of supplying high-quality 5754 aluminum to leading power equipment and ventilation system manufacturers.
If you are looking for a reliable material partner for your project, Mingtai Aluminum is your trusted choice.
Contact us today to request detailed technical specifications for Mingtai 5754 Aluminum and a free sample. Experience the difference that professional-grade material makes for the safety, durability, and efficiency of your products.
