In the world of aluminum, 6061 and 7075 are two of the most prominent alloys. However, their differences in machinability directly impact production costs, efficiency, and the quality of the final part. Choosing the wrong material can lead to rapid tool wear, poor surface finish, or even scrapped components. This guide provides an in-depth, practical comparison of the machinability of these two flagship aluminum alloys to help you make the optimal choice.
First, it’s essential to understand their fundamental differences:
* 6061 Aluminum: This is a heat-treatable aluminum alloy, primarily alloyed with magnesium and silicon. It is renowned for its excellent corrosion resistance, high toughness, and good weldability, offering medium strength. Its relatively softer and tougher nature gives it a reputation for being “easy to machine.”
* 7075 Aluminum: This is a super-high-strength aluminum alloy, primarily alloyed with zinc. It is designed for maximum strength, comparable to many steels. However, this very high strength introduces distinct machining challenges.
A simple analogy: 6061 is like a dense hardwood, while 7075 is more like high-strength alloy steel. This fundamental difference directly translates into their machining behavior.
For a more detailed breakdown of their mechanical properties, see our comprehensive guide, “6061 VS 7075 Aluminum: A Comprehensive Comparison“.
In machining, 6061 is typically used as the benchmark (100% machinability rating). The machinability rating for 7075 is generally only 60-70%. This means that under identical conditions, machining 7075 causes faster tool wear, requires more power, and demands stricter process control.
* 6061: With suitable tools and parameters, it produces small, easily broken “C-shaped” chips. Good chip evacuation leads to a more stable process and reduces the risk of damaging the machined surface.
* 7075: Due to its high strength and toughness, it tends to produce long, continuous stringy chips. These can wrap around the tool or workpiece, potentially damaging the tool and posing a safety hazard, requiring active chip-breaking strategies.
* 6061: It is very “friendly” to tools. Standard uncoated or TiN-coated carbide tools are sufficient for most tasks, offering a long tool life.
* 7075: The high content of hard alloying elements like copper, magnesium, and zinc makes it more abrasive. We strongly recommend using sharp, wear-resistant carbide tools with multilayer coatings (like TiAlN). A dull tool can easily cause “work hardening” in 7075, making subsequent passes more difficult and accelerating tool failure.
* 6061: It has a wide, forgiving window for machining parameters. It is relatively easy to achieve a high-quality surface finish.
* 7075: A strategy of “higher spindle speeds, moderate feed rates, and deeper cuts” is often required. High speeds help reduce cutting forces, while deeper cuts ensure the tool tip engages below any work-hardened layer, avoiding hardening caused by “rubbing” or light cuts. With correct parameters, 7075 can also achieve an excellent surface finish.
For 7075, a high-pressure, abundant supply of coolant is crucial. It not only effectively controls heat, preventing part distortion and tool softening, but also helps flush away the sticky chips, preventing re-cutting.
* Excellent machinability and high material removal rates.
* Lower overall production cost (less tool wear, higher efficiency).
* Good weldability and corrosion resistance.
* Applications include most structural components, prototypes, enclosures, and jigs.
* The ultimate strength-to-weight ratio for high-stress critical components.
* Demanding fields like aerospace, high-performance robotics, motorsport parts, and high-end mold bases.
* You are willing to accept higher machining costs and stricter process control for top-tier performance.
In summary, 6061 is a versatile “all-rounder”—easy to work with and cost-effective. 7075 is a “special forces” material—extremely capable but demanding a precise approach. Your choice should be based on a careful balance between the part’s application, performance requirements, and manufacturing costs.

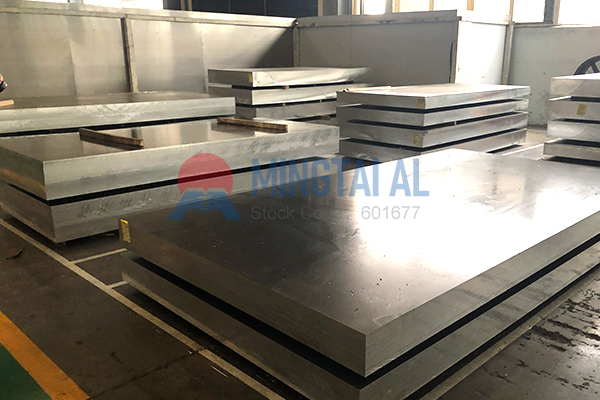

Regardless of your choice, the foundation of performance is the quality of the raw material. Henan Mingtai Aluminum (Mingtai Aluminum), a leading aluminum processor in China, supplies high-quality 6061 and 7075 series aluminum plates and bars. Through strict composition control, advanced heat treatment processes, and precise dimensional management, we ensure every batch of material delivers stable and reliable inherent properties. This provides a solid foundation for your precision machining, leading to greater efficiency and higher yield rates. Understanding the practical implications of 7075 vs 6061 machinability is key to selecting the right grade from a trusted supplier.
We hope this guide is valuable. To learn more about Mingtai Aluminum’s high-performance aluminum alloys, please contact us for professional technical support and material selection advice.
