The electric vehicle market is growing rapidly. As the “heart” of an EV, the battery pack’s safety and performance are critical. The battery enclosure acts as the key armor protecting this heart.
Choosing the right aluminum alloy directly impacts the enclosure’s weight, strength, heat dissipation, and safety. Faced with three common alloys—3003, 5052, and 6061—how should engineers and purchasers decide? This article provides a clear material selection guide.
Compared to steel or composites, why does aluminum stand out?
– Significant Lightweighting: Aluminum’s density is only about one-third that of steel. A lighter enclosure means a longer driving range.
– Excellent Thermal Conductivity: Batteries generate heat during operation. Aluminum dissipates heat quickly, preventing overheating and extending battery life.
– Strong Corrosion Resistance: It resists moisture, salt spray, and other environmental factors, ensuring long-term reliability.
– High Recyclability: Aluminum can be recycled indefinitely, aligning with the automotive industry’s trend toward sustainability.
– Composition: Aluminum-Manganese alloy.
– Core Strength: Excellent formability. It is very soft, easy to bend and stretch, and particularly adept at complex processes like deep drawing and spinning. It also offers good corrosion resistance.
– Typical Applications: Top covers, bottom plates, or internal cooling plates with complex flow channels. For parts with intricate shapes requiring deep forming, 3003 is the preferred choice.
– Composition: Aluminum-Magnesium alloy.
– Core Strength: Exceptional all-around performance. It offers higher strength than 3003, combined with excellent corrosion resistance (especially in humid, salt-laden environments), and outstanding weldability.
– Typical Applications: Lower enclosures, side panels, and protective plates for battery packs. It provides sufficient structural strength while being well-suited for stamping and welding processes, making it the most widely used “versatile player.”
– Composition: Aluminum-Magnesium-Silicon alloy.
– Core Strength: Can be significantly strengthened through heat treatment (T6). T6-tempered 6061 has far greater strength than 3003 or 5052. It also has excellent machinability.
– Typical Applications: External frames, load-bearing cross members, lifting lugs, and connectors for battery packs. Wherever components must withstand high stress and ensure structural rigidity, 6061-T6 is the ideal choice.
A simple ranking clarifies the differences:
– Strength (High to Low): 6061-T6 > 5052-H32 > 3003-H14
– Need load-bearing capacity? Choose 6061. Need moderate strength? 5052 offers better value.
– Formability (Easy to Difficult): 3003 > 5052 > 6061
– Doing deep drawing? Only 3003 handles it easily. Simple bending? All three can manage.
– Corrosion Resistance (High to Low): 5052 ≈ 3003 > 6061
– Concerned about coastal environments or de-icing salts? 5052 and 3003 are more reassuring.
– Weldability (Best to Good): 5052 ≈ 3003 > 6061
– Large-scale welding assembly? 5052 and 3003 have wider processing windows and are easier to work with. 6061 can be welded but requires more precise techniques.
There is no single best alloy, only the most suitable one. Base your decision on your core process and performance needs:
– Scenario 1: Your design involves complex deep-drawn structures (e.g., cooling channels, raised features)
– Answer: Choose 3003. It is the only one that can undergo complex plastic deformation without cracking.
– Scenario 2: You need to manufacture a strong, corrosion-resistant lower enclosure mainly using stamping and welding
– Answer: 5052 is your “multi-purpose solution.” It strikes the perfect balance between strength, corrosion resistance, and manufacturability.
– Scenario 3: You need to manufacture high-strength support frames or load-bearing brackets with relatively simple shapes
– Answer: 6061-T6 is the optimal choice. It provides unparalleled structural rigidity.
In practice, a well-engineered battery pack design often uses a combination of these materials: 6061 for the frame, 5052 for the housing, and 3003 for complex internal components, leveraging the strengths of each.

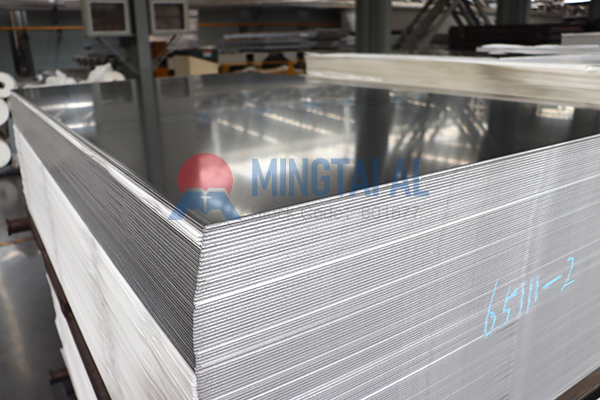

Once your design is finalized and you need a stable, high-quality raw material supplier, choose Mingtai Aluminum. We professionally supply a full range of aluminum products for new energy battery enclosures, including 3003, 5052, and 6061, supporting the safety and reliability of every battery pack you produce with consistent quality. Selecting the right Aluminum Alloy for EV Battery Enclosures is the first step, and we are here to provide the best materials for that step.
Q: My battery enclosure requires deep drawing. Which alloy is the safest choice?
A: 3003 aluminum alloy. Its high elongation makes it ideal for deep drawing and complex forming.
Q: I hear 5052 is the most widely used. What makes it so good?
A: 5052 offers the best balanced performance: stronger than 3003, easier to form/weld than 6061, and highly corrosion-resistant. A reliable, cost-effective choice for most designs.
Q: Should 6061 alloy always be purchased in the T6 temper? Where is it used?
A: Yes, its main value is the high strength and hardness from T6 heat treatment. It’s mainly used for structural frames, cross members, and lifting lugs, not for large skins.
Q: Is the corrosion resistance of these alloys sufficient? Need surface treatment?
A: Their inherent corrosion resistance is good. However, for long-term durability, it’s common to add protective layers like conversion coating or powder coating.
