Safe and reliable ramps are crucial for the efficient and secure movement of both personnel and vehicles in industrial facilities, logistics warehouses, commercial buildings, and public spaces. Facing the challenges of traditional materials—such as corrosion, heaviness, or poor slip resistance—aluminum checker plate is becoming the preferred solution for modern ramp construction due to its outstanding overall performance.

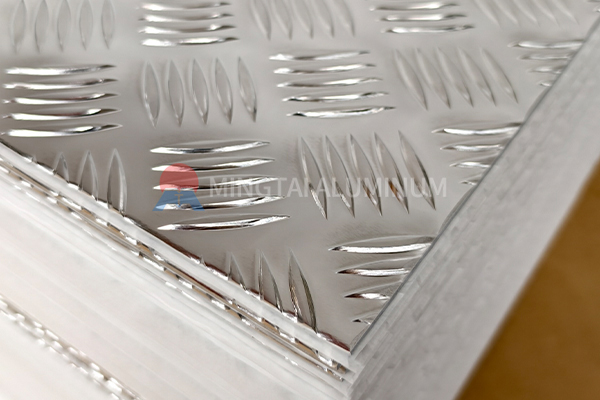

Aluminum checker plate, also known as aluminum tread plate, delivers core value by perfectly balancing safety, durability, and practicality.
* Superior Slip Resistance for Safety: The raised pattern on the surface (especially the classic “5-bar” design) provides strong traction in dry, wet, or even oily conditions, significantly reducing the risk of slips and falls—a primary safety consideration for any ramp.
* High Strength, Light Weight: Aluminum alloy offers strength comparable to steel but at only one-third the weight. This dramatically reduces the ramp’s own load, placing less demand on foundations and support structures. It simplifies installation and lowers overall construction costs.
* Excellent Corrosion Resistance & Longevity: Aluminum naturally forms a protective oxide layer, giving it exceptional rust and corrosion resistance without the need for painting. It easily withstands rain, de-icing salts, and many industrial chemicals, ensuring a service life of decades.
* Low Maintenance & High Cost-Effectiveness: Routine cleaning with water is often sufficient to maintain its performance. It eliminates the periodic anti-rust maintenance required for steel, making its total cost of ownership highly competitive over its lifespan.
Selecting the correct plate is fundamental to ensuring long-term safety and cost-effective operation.
For ramp applications, the 5-bar pattern is widely recognized as the optimal choice. Its longitudinal raised bars offer excellent anti-slip properties and provide directional channels to quickly drain water and snow, ensuring consistent safety on inclines.
Thickness is the key parameter determining load capacity. An incorrect choice can lead to deformation or safety risks.
* Light Load (Pedestrians, Hand Carts): A thickness of 2.0mm – 2.5mm is recommended.
* Medium Load (Light Vehicles, Forklifts): A thickness of 3.0mm – 4.5mm is recommended, suitable for most industrial ramps.
* Heavy Load (Trucks, Heavy Equipment): A minimum thickness of 5.0mm is essential, and professional structural calculation is advised.
Alloy 5052 is commonly used for ramp tread plate due to its good formability, fatigue strength, and excellent corrosion resistance. For applications requiring higher strength, Alloy 6061 can be considered. Anodizing the surface enhances hardness, wear resistance, and aesthetics.
Installation requires a solid underlying support frame made of steel or aluminum. It is recommended to install the plate with the bars running perpendicular to the ramp direction to maximize slip resistance. Use stainless steel or aluminum fasteners and allow for appropriate expansion joints.
Choosing materials for your ramp project is a commitment to long-term safety. Mingtai Aluminum, as a professional aluminum supplier, provides high-quality aluminum checker plate for ramps in various alloys (including 5052 and 6061), thicknesses, and sizes. Our products meet strict quality standards, and we offer expert selection advice and technical support tailored to your project needs, helping you build a safe, durable, and cost-effective ramp solution.
#Frequently Asked Questions (FAQ)
Q1: How slip-resistant is an aluminum checker plate ramp in icy conditions?
A: The raised pattern effectively breaks up smooth ice layers, providing significantly better traction than a flat surface.
Q2: Is aluminum strong enough for heavy loads compared to steel?
A: Yes. When the correct alloy and thickness are selected, aluminum ramps can meet the same load-bearing requirements as steel, with the advantage of being much lighter.
Q3: Can I order custom-sized plates?
A: Yes. We offer precise custom cutting services to match your project specifications, minimizing on-site waste.
Q4: Is the installation complicated?
A: Installation is straightforward with a proper support frame. We recommend professional installation to ensure all safety and performance standards are met.
