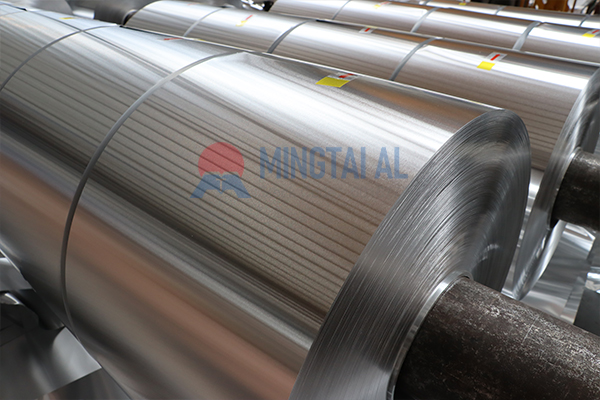

For long cable life: aluminum foil for cable insulation

In a cable’s structure, there is one unassuming yet critical material: aluminum foil for cable insulation. Wrapped around the conductor, it acts as a protective barrier, safeguarding signal transmission stability and extending the cable’s service life. Whether you are a cable procurement officer, a technical engineer, or a newcomer to the industry, choosing the right foil is a big step toward ensuring cable quality.

What Exactly Does Aluminum Foil Do in a Cable?

Many people know that cables need a shielding layer, but they aren’t always clear on the specific tasks aluminum foil performs. Simply put, its role can be summarized in four points:

Electromagnetic Shielding. Aluminum foil has good electrical conductivity. It blocks external electromagnetic waves from interfering with the cable and prevents internal signals from leaking out and disrupting other equipment. In high-frequency signal transmission scenarios, like network cables or TV coaxial cables, this foil layer is especially critical.

Moisture Resistance. Aluminum foil has a dense structure that makes it difficult for water vapor to penetrate. Working with the cable’s outer jacket, it provides a reliable moisture barrier for the conductor and insulation layer. Outdoor cables and direct-buried cables would have a significantly shorter lifespan without this layer.

Physical Protection. Aluminum foil possesses a certain level of strength and toughness. Cables are inevitably bent and squeezed during installation. The foil layer helps distribute external force, providing a cushioning effect that protects the internal structure from damage.

Grounding and Conduction. Aluminum foil can also function as a grounding conductor. It promptly directs static electricity or leakage current into the ground, which is particularly important for locations with high safety requirements, such as hospitals and data centers.

Don’t Just Focus on Thickness; These Three Parameters Are Key

Many procurement professionals, when sourcing foil, first ask about thickness. Thickness is indeed important, but focusing solely on it is insufficient. The factors that truly determine the shielding effect are the following three dimensions:

Is the Alloy Type Correct?

Common alloys used for cable foil include 8011, 8079, and 1235.

– 1235 Aluminum Foil: Has an aluminum purity of no less than 99.35%, offering excellent electrical conductivity and a soft texture. It is suitable for communication cables and high-frequency signal lines.

– 8011 Aluminum Foil: Offers higher strength and good cost-effectiveness, commonly used for standard power cables and control cables.

– 8079 Aluminum Foil: Provides better elongation than 8011, making it suitable for applications requiring bending.

Simply put: Choose 1235 for conductivity, 8011 for a balance of strength and cost, and 8079 for special bending requirements.

Is the Pinhole Rate Acceptable?

Pinholes are tiny penetration points in the foil. Don’t underestimate them; they are pathways for signal leakage and moisture ingress. For high-frequency cables or harsh environments, the pinhole rate must be strictly controlled. A common industry standard is ≤5 pinholes per square meter. When purchasing, you can request inspection reports from the supplier.

Does Tensile Strength Match the Application?

If the foil is too soft, it can tear during installation. If it’s too hard, it might crack when bent. Tensile strength is typically controlled between 50–110 MPa. The specific value should be matched to the cable’s bend radius and application scenario.

For easy comparison, here are the core parameters in a table:

Three Common Misconceptions: Have You Encountered Any?

Misconception 1: Only looking at thickness, ignoring the alloy.

Some people think all 0.02mm foil is the same. In reality, the conductivity difference between 1235 and 8011 can be 5% to 8%. Using the wrong alloy directly compromises the shielding effect.

Misconception 2: Believing softer foil is always better.

If the foil is too soft and lacks strength, it can break during high-speed wrapping production. If it’s too hard, it might crack when bent. A balance must be struck between the O-temper (soft) and H18 temper (hard) based on the actual process requirements.

Misconception 3: Overlooking batch-to-batch pinhole rate consistency.

A sample passing inspection doesn’t guarantee the entire batch is qualified. It’s advisable to require pinhole test reports for each batch from the supplier. For long-term cooperation, standardizing the production process is even more critical.

New Industry Trends: Cables Are Getting Thinner, Foil is Getting More “Refined”

5G and new energy vehicles are changing the design logic for cables.

High-frequency communication demands thinner foil with a smoother surface to reduce signal attenuation. Some high-end cables are now using ultra-thin foil below 0.01mm.

High-voltage cables require foil that balances conductivity and corrosion resistance while also being lightweight to reduce the overall weight of vehicles or equipment.

Environmental regulations are also driving industry upgrades. The use of recycled aluminum is increasing, but impurity levels must be strictly controlled, otherwise, conductivity will be affected.

As a specialist in the aluminum substrate field, Mingtai Aluminum offers a full range of aluminum foil for cable insulation (alloys 8011/8079/1235, thickness 0.006–0.2mm). We strictly control pinhole rates and tensile strength to help your cable products meet international certifications like UL and IEC. Choose Mingtai, and let every meter of your cable’s shielding performance stand the test.

FAQ

Q1: What happens if the pinhole rate of the foil is too high?

A: Pinholes can cause electromagnetic signal leakage or moisture ingress, potentially leading to signal interruption or short circuits, especially in high-frequency or humid environments. It’s recommended to choose foil with a pinhole count ≤5/m² and request test reports from the supplier.

Q2: What’s the real difference between 8011 and 1235 alloy foil?

A: 8011 contains small amounts of iron and silicon, offering high strength and moderate cost, suitable for standard power cables. 1235 has higher aluminum purity (≥99.35%), providing better conductivity and ductility, making it ideal for communication and precision cables.

Q3: Does cable insulation foil need to be laminated?

A: Lamination (e.g., with PP/PE) can enhance tensile strength and moisture resistance. It depends on the cable’s structural design. If using bare foil, choose an H-temper product with tensile strength ≥80 MPa.

Q4: Can Mingtai Aluminum provide samples for testing?

A: Yes, we support custom sample production for cable manufacturers and offer alloy selection advice to help optimize shielding layer performance.
