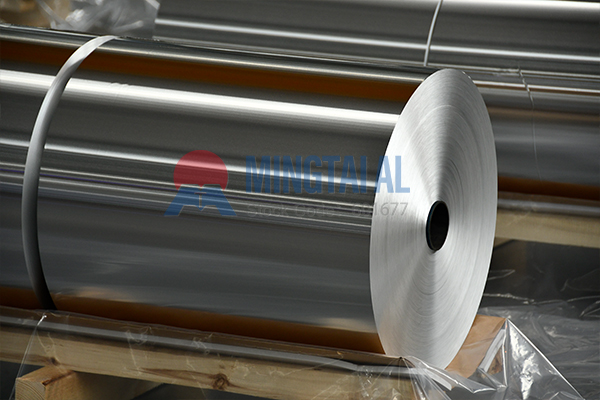

From wearable health monitors to foldable displays, from lightweight electronic skin to implantable medical sensors, flexible printed electronics are reshaping our world at an unprecedented pace. Behind these remarkable innovations lies a seemingly ordinary yet critical material acting as the “invisible backbone” – high-performance aluminum foil. As an ideal circuit substrate, conductive layer, or electromagnetic shielding material, aluminum foil is indispensable in flexible electronics design due to its excellent conductivity, thermal management, light weight, flexibility, and superior cost-effectiveness. However, not all aluminum foils are suited for this precise role. Minor deviations in material selection can lead to unstable product performance, reduced yield, or even final failure. This article will provide an in-depth analysis of the stringent requirements for aluminum foil for flexible printed electronics and offer a practical selection guide.
Flexible electronic products impose demands on aluminum foil that far exceed conventional industrial standards:
* Exceptional Surface Flatness & Cleanness: The surface must be mirror-like. Any microscopic irregularities, oil stains, or scratches can cause coating defects or circuit breaks, ruining precision etching.
* Ultra-High Purity & Consistency: Trace impurities affect etching and long-term reliability. We typically recommend high-purity alloys like the 1xxx or 8xxx series for their fine, uniform grain structure and stable performance.
* Superior Mechanical & Dimensional Properties: The foil must withstand repeated bending. Exceptional flexibility (often in O-temper) and perfect thickness uniformity are non-negotiable to prevent impedance variation and signal issues.
* Perfect Process Compatibility: It must adapt seamlessly to cleaning, coating, etching, and lamination. This requires not only initial quality but also outstanding batch-to-batch stability.
Common pitfalls from unsuitable foil and how to avoid them:
* Problem: Surface oil or debris.
* Consequence: “Fisheyes” in coating, poor adhesion, leading to open circuits.
* Problem: Significant thickness variation.
* Consequence: Inconsistent impedance within a batch, unstable product performance.
* Problem: Coarse grain structure from improper annealing.
* Consequence: Low flex fatigue life, as grain boundaries become crack initiation points.
* The Solution lies in source control: Using high-purity ingots, precision rolling, strict inline inspection, and customized annealing.
How to choose the most suitable aluminum foil for diverse flexible electronics applications? Here is a simplified decision-making reference:
|
Application Scenario |
Core Need |
Foil Selection Focus |
|
High-Frequency/High-Speed Flexible Circuits |
Low signal loss, stable transmission |
Extremely low surface roughness, high purity to minimize skin effect. 1xxx series high-purity foil (e.g., 1060) with precise temper control is often recommended. |
|
High-Dynamic Bending Areas(e.g., hinges, foldable zones) |
Superior flex fatigue resistance |
Foil in O-temper (fully soft) or custom-annealed state for ultimate flexibility. 8xxx series alloys (e.g., 8079), known for their good balance of flexibility and strength, are often ideal choices. Thickness uniformity is critical. |
|
EMI Shielding / Grounding Substrates |
Excellent shielding effectiveness and conformability |
Ensure guaranteed thickness (e.g., 25-50μm) and conductivity. Surface must be clean for adhesive bonding. 1xxx or 3xxx series alloys can provide good overall performance. |
|
Consumer Electronics Flexible Components(e.g., sensors, antennas) |
Balance of cost, performance, and reliability |
Choose cost-effective, proven alloy solutions like 1xxx (1050) or 8xxx (8021), with a strong focus on batch consistency to ensure high-volume production yield. |
Regarding alloy choice, 1xxx series foil (purity ≥99.5%) is a foundational option for many applications due to its excellent conductivity, corrosion resistance, and formability. 8xxx series foil (e.g., 8011, 8079), while maintaining high purity, offers improved strength, flexibility, and deep-drawability through trace element additions, making it highly suitable for scenarios demanding extreme bend longevity. The key is matching the appropriate alloy grade and temper to your core performance requirements.
In the highly precise field of flexible electronics, selecting aluminum foil is not merely a purchase but a commitment to long-term technical support and supply chain reliability. Consistent batch-to-batch quality means your manufacturing process requires fewer adjustments. Comprehensive technical data support (e.g., mill test certificates, inspection reports, surface profilometry) forms the foundation for your design validation and quality traceability. Responsive technical service can provide expert support from a materials science perspective when challenges arise.
At the forefront of flexible electronics innovation, every groundbreaking design requires equally meticulous base materials. Mingtai Aluminum has long been dedicated to the R&D and manufacturing of high-performance aluminum foil. We deeply understand the stringent demands placed on base materials in flexible printed electronics. We are committed to providing global customers with high-quality aluminum foil characterized by exceptional surface flatness, precise thickness uniformity, and outstanding batch consistency. Supported by comprehensive technical data and professional service, we help you reliably transform innovative designs into reality.
Choosing the right aluminum foil for flexible printed electronics is the solid first step toward your product’s success. We invite you to explore our product portfolio for more technical information or to discuss your specific needs with our engineering team.
