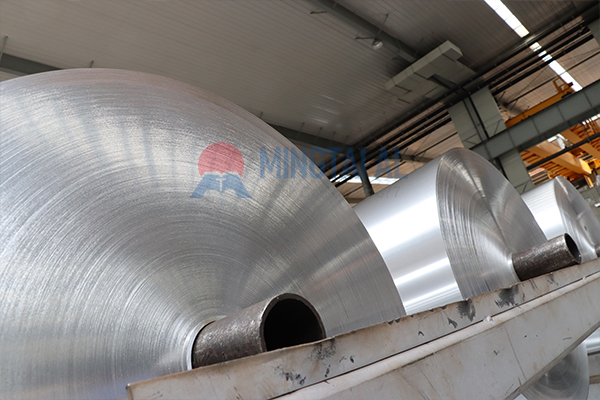

Aluminum foil for insulation facing is widely used as a reflective layer in modern thermal insulation systems. Instead of acting as a standalone insulation material, it enhances overall performance by reflecting radiant heat and supporting moisture control when integrated into the right structure. Its effectiveness depends not only on the foil itself, but also on how it is applied within insulation assemblies.
Not all aluminum foil serves the same purpose. Insulation-facing foil is designed to work within building or equipment insulation systems, often combined with other materials.
Key distinctions include:
* Designed for thermal reflection, not just packaging or barrier use
* Typically used in multi-layer structures (e.g., with fiberglass, rock wool, or air bubbles)
* Optimized for durability and stability in construction or industrial environments
Because of these characteristics, it plays a functional role in improving insulation efficiency rather than acting as insulation itself.
The primary function of aluminum foil in insulation facing is to reduce heat transfer through radiation. When properly installed, especially facing an air gap, it reflects a significant portion of radiant heat.
In practical terms, this means:
It is important to note that without an adjacent air space, the reflective benefit is greatly reduced. This is why installation design is just as critical as material selection.
Aluminum foil for insulation facing appears in a wide range of applications, especially where thermal control and moisture resistance are both important.
HVAC Systems
* Duct insulation wrapping
* Air handling units
* Pipe insulation systems
Building Envelopes
* Roof and attic insulation layers
* Wall cavity insulation systems
* Metal building insulation assemblies
Industrial Applications
* Equipment insulation
* Thermal shielding in machinery
* Storage tanks and process systems
Rather than being used alone, the foil is usually part of a composite material. A typical insulation-facing structure may include:
* Outer layer: Aluminum foil (reflective surface)
* Core material: Fiberglass, mineral wool, or polyethylene bubbles
* Backing layer: Kraft paper, plastic film, or scrim reinforcement
This layered design allows the system to combine reflection, insulation, and mechanical strength in one product.
Choosing the right aluminum foil for insulation facing depends on how and where it will be used. Several technical aspects influence performance:
1. Thickness
Thicker foil generally offers better durability and resistance to tearing, especially in industrial or outdoor environments.
2. Single-Sided vs Double-Sided
* Single-sided foil: common in standard insulation systems
* Double-sided foil: used when reflection is needed on both sides
3. Compatibility with Insulation Materials
The foil should integrate well with:
* Glass wool
* Rock wool
* Foam insulation
*For insulation-facing applications, alloys such as 8011 and 1235 aluminum foil are commonly used due to their stable performance, good barrier properties, and suitability for lamination with various insulation materials.*
4. Environmental Conditions
Consider exposure to:
* High humidity
* Temperature fluctuations
* Mechanical stress
5. Installation Design
Performance is closely tied to:
* Presence of an air gap
* Orientation of the reflective surface
* Sealing and continuity of the insulation layer
Some assumptions about foil insulation facing can lead to performance issues if not addressed early.
* “Foil alone is enough for insulation”
→ It works as part of a system, not as a standalone solution
* “Installation direction does not matter”
→ Reflective performance depends on correct orientation
* “All foil materials perform the same”
→ Differences in thickness, structure, and bonding significantly affect results
In real-world use, aluminum foil for insulation facing often supports both thermal efficiency and system longevity. For example:
* In HVAC ducts, it helps maintain air temperature while reducing condensation risk
* In roofing systems, it contributes to lowering heat gain from solar radiation
* In wall insulation, it adds a reflective layer that complements bulk insulation materials
These combined benefits make it a widely adopted solution across construction and industrial sectors.
Q1: Is aluminum foil for insulation facing a standalone insulation material?
No. It functions as a reflective and protective layer within a larger insulation system.
Q2: Does it always need an air gap to work effectively?
For optimal reflective performance, an adjacent air space is typically required.
Q3: Can it be used in high-humidity environments?
Yes, but the overall insulation structure must be designed to manage moisture properly.
Q4: Is double-sided foil always better than single-sided?
Not necessarily. The choice depends on the application and whether reflection is needed on both sides.
Reliable raw material consistency plays an important role in insulation performance. Mingtai Aluminum provides stable aluminum foil supply with flexible specifications to match different insulation-facing requirements.
