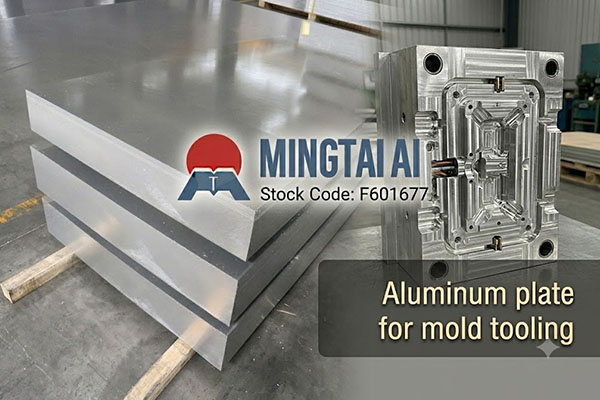

Aluminum plate for mold tooling

Introduction

When you search for “Aluminum plate for mold tooling – what hardness?”, what you really mean is: which hardness level best suits your specific mold application. Hardness directly affects wear resistance, dent resistance, and service life – but higher is not always better. Harder plates are tougher to machine and cost more, while moderately hard ones offer faster machining and better overall value. The key is matching hardness to your real working conditions.

Understanding Hardness Units – HB, HRC, and HV

For aluminum tooling plates, the most common hardness scale is Brinell (HB). You may also see Rockwell (HRB, rarely HRC) and Vickers (HV), but HB gives the clearest comparison across different alloys. You don’t need to be a hardness expert – just know how the numbers compare.

Hardness Comparison of Common Mold Alloys

The table below shows typical Brinell hardness values for popular alloys used in mold making:

> General rule: Hardness ranking among alloy series (from highest to lowest) – 7xxx > 2xxx > 6xxx > 5xxx > 3xxx > 1xxx.

What Hardness Range Fits Which Mold Scenario?

– ~70 HB (e.g., 5083) – Ideal for low‑pressure, low‑wear applications. Its standout advantage is corrosion resistance, making it great for humid or salt‑exposed environments. The trade‑off is lower wear resistance.

– ~95 HB (e.g., 6061/6082) – The workhorse of mold tooling plates. It machines 5‑10 times faster than steel, conducts heat 5‑6 times better, and costs only 20‑30% of a steel mold. Excellent for blow molds (cooling cycles drop from 30s to 12‑15s) and prototype molds (CNC delivery in 3‑7 days versus 15‑30 days for steel).

– ≥150 HB (e.g., 7075) – High‑hardness option that rivals some hardened steels. Offers superior wear resistance and significantly longer tool life, but costs more and has poorer weldability. Best for high‑volume, precision molds with heavy loads.

Three Common Pitfalls When Choosing Hardness

1. “Harder is always better” – 7075 is strong but expensive and difficult to machine. Not every mold needs that level of performance.

2. “Only hardness matters, not temper” – The heat‑treatment condition (T6, T651, etc.) dramatically affects final hardness. T651 also relieves internal stress, reducing distortion during machining.

3. “Plate hardness equals mold wear resistance” – Base material hardness and surface hardness are different concepts. Be clear about what you actually need for your production run.

How to Choose the Right One

A quick decision guide:

– For low pressure, small batches, or fast turnaround → 6061 (~95 HB)

– For corrosive or wet environments → 5083 (~70 HB)

– For high loads, high volume, and long life → 7075 (~150 HB)

In short: define your mold’s working pressure and expected output, then match that to the right hardness. That practical approach will save you time, money, and maintenance headaches when selecting your aluminum plate for mold tooling.

A final word from Mingtai Aluminum

Mingtai Aluminum supplies a full range of mold tooling plates in 5083, 6061, 7075 and more, covering everything from standard molds to high‑load precision tooling – all with consistent hardness and reliable quality.

Revised FAQ

Q: What hardness range is typical for mold tooling plates?

A: Mold plates commonly range from ~70 HB (5083) to ≥150 HB (7075), with 6061 at about 95 HB.

Q: Which is harder, 6061 or 7075?

A: 7075‑T6 (≥150 HB) is significantly harder than 6061‑T6 (≥95 HB).

Q: Does higher hardness always extend mold life?

A: Generally yes, but it also raises cost and machining difficulty.

Q: Is hardness the only thing to consider when picking a plate?

A: No, temper, corrosion resistance, weldability, and overall cost matter too.

Q: What are 6061 plates best used for?

A: They suit blow molds, prototype molds, and medium‑load applications.
