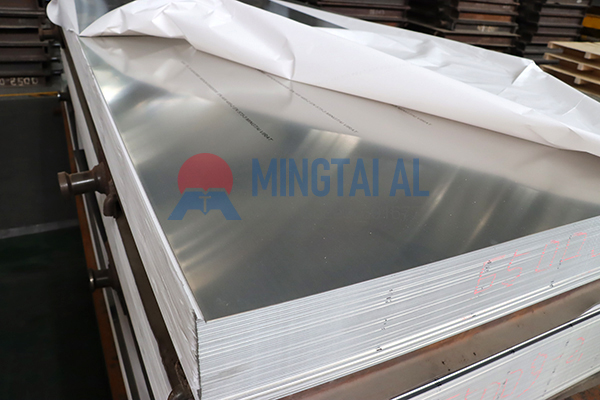

aluminum sheet for architectural curtain wall

In modern architectural design, the curtain wall is the building’s “skin.” Aluminum sheet, known for its light weight, high strength, formability, and excellent weather resistance, is a core material for this “skin.” A high-quality bare aluminum sheet is the foundation for a curtain wall that is safe, flat, and durable. This article systematically explains the essential knowledge about aluminum sheet for architectural curtain wall, helping you make informed selection decisions.

The Core Material – It Starts with the Alloy

Not all aluminum sheets are the same. The alloy composition defines its fundamental properties.

*   Alloy 3003/H24: This is the most prevalent choice in the market. It offers the best balance of strength, formability, and cost-effectiveness. It is suitable for the vast majority of flat curtain wall panels and shallow curved panels, representing the most reliable option.

*   Alloy 5052/H32: Choose this alloy for higher requirements in strength, hardness, or corrosion resistance. It is often used for coastal buildings, complex shapes, or areas demanding higher rigidity.

Selecting the correct alloy is the first critical step to project success.

#Part 2: Five Must-Check Performance Factors During Selection

Beyond the alloy, these performance parameters directly impact the final result:

1.  Mechanical Properties are Key:Focus on Tensile Strength and Yield Strength. They ensure the sheet can resist strong wind pressure without deforming. Elongation indicates its ductility; a higher value means better suitability for deep drawing or bending without cracking.
2.  Flatness is Paramount:The original flatness of the aluminum sheet determines the visual smoothness of the finished curtain wall. High-quality sheets should be as flat as a mirror, preventing “oil-canning” or “waviness.” This is fundamental for a premium building appearance.
3.  Dimensional Accuracy Affects Efficiency:Tolerances for thickness, length, and diagonal dimensions must be tightly controlled. Precise dimensions greatly improve downstream fabrication and installation efficiency, reducing waste and labor costs.
4.  Surface Quality is the Base:As the substrate, the sheet surface should be clean, free from significant mill roll marks, scratches, or stains. A good substrate surface is the prerequisite for a perfect final coating.
5.  Batch Consistency Ensures Uniformity:For large projects, consistent performance and color (of the substrate) across different production batches is crucial. This directly affects the uniformity of the entire building façade.

Selection Advice for Different Applications

*   Standard Flat Curtain Walls: Alloy 3003/H24 is the primary choice. Thickness depends on wind load calculations and panel size; 2.5mm to 3.0mm is common.

*   Perforated or Decorative Sunshades: These demand strength and internal quality from the sheet. Opt for high-stability 3003 or 5052 alloy to ensure clean perforation edges and no deformation.

*   Curved or Special-Shaped Walls: These require excellent material formability. Always select sheets with high elongation and consult your supplier for technical advice on minimum bending radii to avoid cracking.

A Crucial but Often Overlooked Aspect – Quality Control & Certification

Buyers often search for “how to judge aluminum sheet quality?” Beyond the parameters above, authoritative third-party certifications and the factory’s production system are equally important.

*   Check Certifications: Reputable producers typically hold ISO 9001 Quality Management System certification. For the product, they should provide mill test certificates conforming to standards like GB/T (Chinese National Standard) or ASTM B209 (U.S. Standard).

*   Ask About Testing: Reliable suppliers have in-house labs to test mechanical properties and chemical composition for each batch. Requesting official test reports when purchasing is the best way to protect your interests.

*   Observe Details: Aspects like coil packaging, neatness of cut ends, and clarity of product markings can reveal a company’s management level and quality consciousness.

Mingtai Aluminum, with decades of experience in aluminum processing, specializes in providing high-performance, stable-quality bare aluminum sheet for global high-end architectural curtain walls. We commit to strict production standards and reliable product consistency, aiming to be your trustworthy raw material partner. Choosing Mingtai means laying a solid and dependable foundation for your building.

FAQ: Aluminum Sheet for Curtain Walls

Q1: What thickness is typically used?

A1: It depends on wind load and panel size. Low-rise often uses 2.5mm; high-rise or large panels need 3.0mm+. Always follow design specifications.

Q2: Big price difference between 3003 and 5052? Which to choose?

A2: 5052 is more expensive. For most projects, 3003-H24 is sufficient. Choose 5052 only for special needs like higher corrosion resistance.

Q3: How to ensure color consistency on a large project?

A3: Consistent substrate is key. Choose a supplier with stable processes (like Mingtai) to ensure uniform base material for finishing.

Q4: Can you produce extra-wide sheets?

A4: Yes. We can produce extra-wide sheets to minimize visible joints. Contact us for specific size capabilities.
