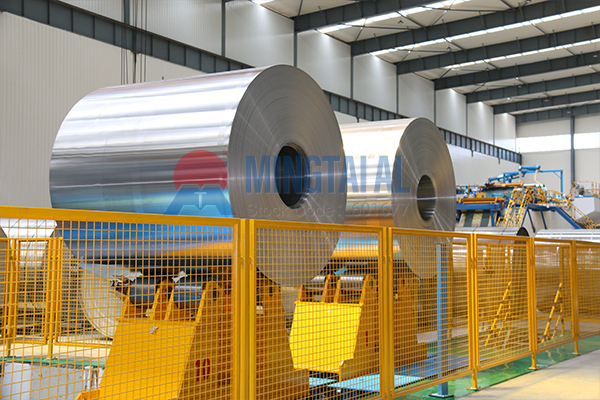

Architectural aluminum coil is a metal coil primarily made of aluminum through rolling processes. Known for its lightweight nature (density only one-third that of steel), corrosion resistance, and ease of processing, it has become a core material in construction for applications such as curtain walls, roofs, and doors/windows. With the advancement of “dual-carbon” goals, its environmental benefits (over 95% recyclability) and functional expandability (e.g., energy efficiency, fire resistance, self-cleaning) are driving its evolution from a structural material to a smart building enabler.
– Weight Reduction & Efficiency: The low density of aluminum coils significantly reduces building weight. For example, Mingtai Aluminum’s 5052 aluminum alloy coil boasts a tensile strength of 230MPa. When used in high-rise curtain wall frameworks, it reduces weight by 40% compared to steel structures while meeting wind pressure resistance requirements.
– Processing Flexibility: Aluminum coils can be bent, stamped, and welded to adapt to complex architectural shapes. Mingtai Aluminum supports customized production with widths up to 2200mm and thicknesses ranging from 0.1mm to 8mm, meeting demands for unique curtain walls and curved roofs.
– Natural Corrosion Resistance: Aluminum forms a dense oxide layer on its surface, offering better salt spray corrosion resistance than steel. Mingtai Aluminum uses chromium-free passivation processes, ensuring a service life of over 20 years in coastal environments and reducing the need for regular painting maintenance.
– Wear & Damage Resistance: The 3003 aluminum coil, after hard anodizing, achieves a surface hardness of over HV600, making it suitable for high-traffic public building floor decor. Its wear resistance is three times that of ordinary tiles.
– Low-Carbon Production: By utilizing recycled aluminum (annual scrap aluminum recycling exceeds 300,000 tons) and green electricity, Mingtai Aluminum reduces carbon emissions during coil production by 25% compared to the industry average, helping construction projects achieve green certifications like LEED and BREEAM.
– Full-Lifecycle Recycling: Recycling aluminum coils consumes only 5% of the energy required for primary aluminum production without performance degradation. Mingtai Aluminum has established a closed-loop system of “production-use-recycling-reproduction,” supporting trade-in programs to lower material costs for customers.
Curtain Wall Systems
– Energy-Efficient Curtain Walls: Mingtai Aluminum’s thermal-break coils (with insulated designs) paired with double-glazed glass reduce building energy consumption by 25%, widely used in commercial complexes and skyscrapers.
– Dynamic Curtain Walls: Some projects use photochromic aluminum coils that automatically adjust reflectivity based on light intensity, reducing air conditioning loads with measured energy savings of up to 18%.
Roofing and Sunshades
– Integrated Photovoltaic Roofs: The 6061 aluminum coil serves as a base material for PV brackets, offering strong weather resistance and a design lifespan matching the building’s, lowering initial investment costs.
– Adjustable Sunshades: Perforated aluminum coils, combined with motor-driven systems, enable dynamic adjustment of shading angles, improving indoor comfort.
Fire Safety and Security
– Fire Isolation Belts: The 3003 aluminum coil, with a thickness of 1.2mm and fire-resistant treatment, achieves a fire rating of 1.5 hours, meeting GB 8624 B1 standards for high-rise building escape passage partitions.
– Blast-Resistant Curtain Walls: The 7075 ultra-hard aluminum coil, after special processing, offers three times higher impact resistance, making it suitable for high-security venues like banks and museums.
As a leading aluminum processing enterprise in China, Mingtai Aluminum has 26 years of expertise in coil production, with an annual output of 1.2 million tons from intelligent production lines. Its products are certified to ISO 9001 and GB/T 3880-2012 standards and exported to over 50 countries and regions. Key advantages include:
– General-Purpose Coils: 1050/1060 coils (purity ≥99.5%), cost-effective for non-load-bearing decorative components.
– High-Performance Coils: 5052/6061 coils (alloy-treated), high-strength for structural load-bearing parts.
– Functional Coils: 3003 anti-corrosion coils and 5083 marine-grade coils for specialized environmental needs.
– Online Detection Systems: Each coil undergoes real-time inspections for thickness, flatness, surface defects, and more (10+ parameters). Non-conforming products are automatically rejected, ensuring a pass rate exceeding 99.5%.
– Traceability Management: Each coil has a unique code enabling full traceability from raw materials to finished products, guaranteeing consistent quality.
– 7-Day Quick Delivery: Priority production scheduling for urgent projects to shorten delivery cycles.
– Free Sample Testing: Small-batch samples provided for mechanical performance and corrosion resistance tests.
– Technical Team Support: End-to-end guidance from selection to installation, reducing application risks for customers.
The advancement of architectural aluminum coil represents a deep integration of material technology and construction needs. Mingtai Aluminum offers cost-effective solutions through standardized products, intelligent production, and customized services. Whether for energy-saving green buildings or safety-critical public projects, Mingtai Aluminum delivers reliable quality and efficient support to bring every architectural vision to life.
Contact Mingtai Aluminum today for a selection guide and project case references. Together, let’s drive the construction industry toward lightweight, intelligent, and sustainable transformation!
