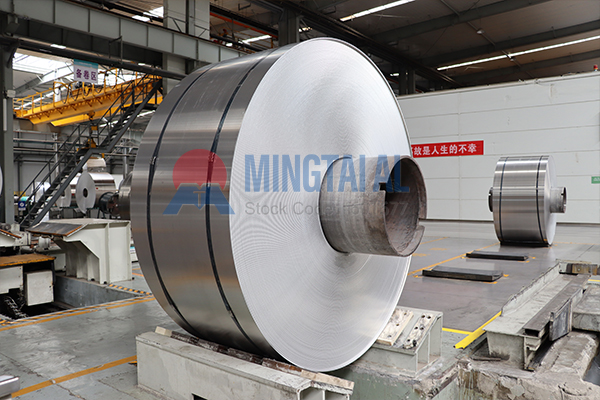

High strength aluminum coil is a core material for lightweight manufacturing. Among all options, the 5xxx and 6xxx series are the most widely used and in highest demand.
What are the differences between them? How do you choose the right one? This article gives you clear answers.
The 5xxx series uses magnesium (Mg) as its main alloying element. It cannot be heat-treated. Strength is achieved through cold working.
Key advantages:
– Excellent corrosion resistance, especially in seawater and high humidity
– Great weldability, suitable for welded structures
– Good formability, easy to shape into complex profiles
– Outstanding low-temperature toughness, ideal for cryogenic tanks
Typical grades:
– 5052: Good formability and strong corrosion resistance. Used for heat exchangers, fuel tanks, general structures.
– 5754: High fatigue strength. Used for automotive panels, pressure vessels.
– 5083: Marine-grade material. Used for ship hulls, offshore platforms, cryogenic tanks.
The 6xxx series uses magnesium and silicon (Mg+Si) as its main alloying elements. Strength can be significantly increased through heat treatment (T4/T6).
Key advantages:
– Higher strength after heat treatment – 6061-T6 reaches 310 MPa tensile strength
– Good machinability, suitable for precision parts
– Good weldability
– Excellent anodizing response, surface-friendly
Typical grades:
– 6061: Best all-around performance – strength, weldability, corrosion resistance.
– 6063: Smooth surface, good anodizing response. Used for window frames, decorative profiles.
– 6082: Higher strength. Used for bridges, cranes, transport equipment.
|
Feature |
5xxx Series |
6xxx Series |
|
Heat treatment |
Not heat-treatable |
Heat-treatable (T4/T6) |
|
Strength |
Medium to high |
Medium to high (higher after T6) |
|
Corrosion resistance |
Excellent (marine grade) |
Good |
|
Formability |
Excellent |
Good |
|
Weldability |
Excellent |
Good to excellent |
|
Machinability |
Fair |
Excellent |
|
Typical uses |
Hulls, tanks, auto panels |
Frames, battery enclosures, building profiles |
– Working in seawater or highly corrosive environment? Choose 5xxx (5083, 5052).
– Need complex forming or a lot of welding? Choose 5xxx (5052, 5754).
– Need maximum strength or precision machining? Choose 6xxx (6061, 6082).
– Need anodizing or decorative surface? Choose 6xxx (6063, 6061).
Automotive & Transportation
5xxx is used for body panels and heat exchangers. 6xxx is used for crash beams, chassis brackets, and battery enclosures. Using high strength aluminum coils can reduce vehicle weight by 30-40%, improving fuel efficiency or electric range.
Marine & Offshore Engineering
Hulls, decks, and offshore platforms prefer 5xxx (5083, 5052). These materials offer excellent resistance to seawater corrosion while keeping weight low and fatigue strength high.
Construction & Industrial Manufacturing
6061 is used for structural frames and curtain wall systems. 6063 is used for windows, doors, and decorative profiles. High strength aluminum coils combine light weight, corrosion resistance, and design flexibility – a mainstream choice for modern buildings.
When sourcing high strength aluminum coils, confirm these specifications:
– Alloy grade: Choose the specific grade under 5xxx or 6xxx based on your application.
– Thickness: Common range 0.2 – 6.0 mm.
– Width: 600 – 2500 mm, affects material utilization.
– Temper: H12/H14 (half hard), H18 (full hard), T6 (heat-treated), O (annealed).
– Tolerance & surface: Tighter thickness tolerance is better. Surface should be flat and scratch-free.
Market trend: New energy vehicles and green buildings are driving rapid growth in demand for high strength aluminum coils. Annual growth rates reach 15% in Asia-Pacific, 10% in North America, and 8% in Europe. Choose a supplier with stable quality and international certifications.
To choose between 5xxx and 6xxx, focus on your operating environment, strength requirements, and processing needs. Need corrosion resistance and formability? Go 5xxx. Need high strength and machinability? Go 6xxx.
For your next project, trust Mingtai Aluminum to deliver reliable high strength aluminum coils in both 5xxx and 6xxx series – consistent quality for global buyers.
Q1: What is the most fundamental difference between 5xxx and 6xxx?
A: Heat treatability. 5xxx is cold-worked with great corrosion resistance. 6xxx is heat-treatable for higher strength.
Q2: Should I use 5xxx or 6xxx for automotive applications?
A: Both. 5xxx for body panels. 6xxx for crash beams and battery enclosures.
Q3: Can 5xxx be used in marine environments?
A: Yes. 5083 and 5052 resist seawater corrosion and weld well – ideal for hulls.
Q4: How do I choose the right aluminum coil for my project?
A: Corrosive environment? → 5xxx. Need highest strength? → 6xxx+T6. Complex forming? → 5xxx.
