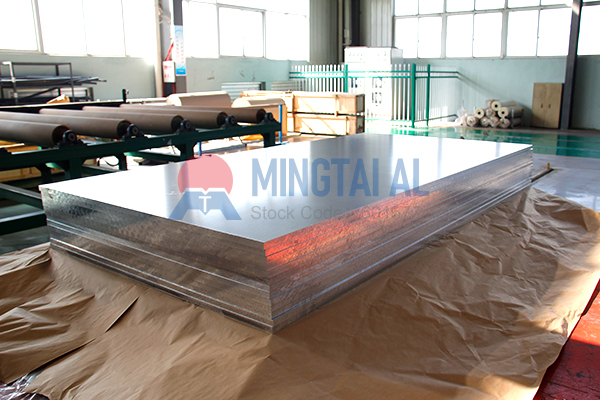

In modern industrial design, where lightweighting and high performance are paramount, material selection is critical. When steel becomes too heavy and standard aluminum lacks the necessary strength, the high strength aluminum plate emerges as the ideal solution. It retains the inherent advantages of aluminum—light weight, corrosion resistance, and ease of fabrication—while achieving mechanical strength comparable to steel through advanced alloy technology and heat treatment.
This guide delves into the science behind high-strength aluminum, explores common alloy series, and explains why Mingtai Aluminum is a trusted partner for your projects.
High strength doesn’t happen by accident. It’s the result of two key processes: “alloying” and “heat treatment.”
* Alloy Strengthening: Key elements like copper, magnesium, zinc, and silicon are added to pure aluminum. They dissolve into the aluminum matrix, disrupting the atomic structure and enhancing the base material’s strength.
* Heat Treatment – The Crucial Step: This is the key to achieving ultra-high strength, primarily involving:
* Solution Heat Treatment: The plate is heated to a specific temperature, allowing the alloying elements to fully dissolve into the aluminum.
* Quenching: It is rapidly cooled, “locking” these elements in place to form a supersaturated solid solution.
* Aging: The material is kept at room temperature (natural aging, T4 temper) or a elevated temperature (artificial aging, T6 temper). This allows fine, strengthening particles to precipitate uniformly throughout the structure, significantly boosting strength. The T6 temper is the most common high-strength condition available.
Different combinations of alloying elements create plates with distinct properties to meet various challenges.
* Characteristics: Primarily alloyed with copper, this series offers an exceptional strength-to-weight ratio and excellent fatigue performance. It machines very well. However, its corrosion resistance is relatively lower, often requiring cladding or coating for protection.
* Typical Uses: Aircraft skin, aerospace structures, truck wheels, high-stress structural components.
* Characteristics: Alloyed mainly with zinc, this series boasts the highest strength of all commercial aluminum alloys, with strength levels surpassing many mild steels. 7075 is the most famous representative, often called “super-hard aluminum.”
* Typical Uses: Primary aerospace structures (e.g., wing spars), high-performance bicycle frames, precision molds, premium climbing gear.
* Characteristics: Using magnesium and silicon as the primary elements, these alloys can be heat-treated to medium-high strength. Their greatest advantage is outstanding overall performance: excellent corrosion resistance, very good weldability, and good formability. This is the most widely used series for high-strength applications.
* Typical Uses: New energy vehicle battery enclosures, automotive frames, ship decks, architectural structures, machine rails.
Follow this decision-making framework to find your optimal match:
* Maximum Strength → Choose the 7XXX Series.
* Best Balance of Strength & Corrosion Resistance → The 6XXX Series is optimal.
* Performance at Elevated Temperatures → Consider the 2XXX Series.
* Need Welding? → The 6XXX Series is the best choice, offering far superior weldability compared to 2XXX and 7XXX series.
* The 6XXX Series often provides the best value for most industrial applications due to its excellent all-around properties and cost-effectiveness.
Once you understand the material, a reliable supplier is key to your project’s success. Mingtai Aluminum, a leading aluminum processor, is committed to providing high-quality, high-performance aluminum products.
* Comprehensive Product Range: We supply a full spectrum of high-strength plates from the 2XXX, 6XXX, and 7XXX series, available in various thicknesses, widths, and tempers (O, T4, T6), meeting your one-stop sourcing needs.
* Stringent Quality Control: From casting and hot rolling to heat treatment, every step is governed by strict quality management. This ensures chemical composition, mechanical properties, and dimensional accuracy meet or exceed standards.
* Expert Technical Support: Our experienced team provides professional material selection advice and technical consultation to help optimize your design and reduce costs.
* If you know your requirements, browse our Aluminum Plate product center for detailed specifications and technical data.
* If you need assistance, please contact our sales and technical team. We’re here to provide a tailored solution.
Choosing Mingtai means more than just purchasing a premium material—it’s partnering with a trusted expert for the long term. Let our high-performance plates help your products stand out from the competition.
