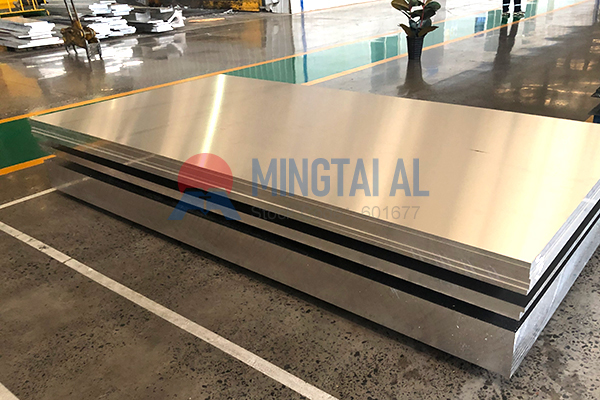

What Marine Grade Aluminum Plate Thickness Do You Need?

In modern shipbuilding and marine engineering, marine-grade aluminum alloys (such as 5083, 5086, 5454) are indispensable. They offer excellent corrosion resistance, high strength-to-weight ratio, and good weldability. After selecting the correct alloy, choosing the right marine grade aluminum plate thickness becomes the next critical decision. This choice directly impacts structural safety, performance, and overall project cost. It requires a careful balance of safety, economics, and manufacturability. As a specialist supplier, Mingtai Aluminum provides this guide to help you navigate this key specification.

Why Plate Thickness is a Critical Choice

Thickness is not just a simple measurement. It is the foundation for meeting multiple engineering goals.

*   Structural Integrity & Safety: Plate thickness is the primary factor in resisting external forces like hydrostatic pressure, wave impact, and cargo loads. Insufficient thickness in critical areas like the hull bottom or sides can lead to deformation or failure.

*   Corrosion Allowance & Service Life: The marine environment is harsh. Adequate thickness provides a crucial “corrosion allowance.” This ensures the core structure remains sound throughout the vessel’s design life, even with expected surface corrosion.

*   The Weight vs. Performance Balance: Reducing weight improves speed and fuel efficiency, but excessive thinning compromises safety. Choosing thickness is about finding the optimum point between regulatory minimums and performance goals.

*   Foundation for Fabrication: Thickness directly affects cutting and bending parameters. It also determines weld preparation, heat input, and the final quality of the weld joint.

Common Thickness Ranges and Their Applications

Thickness selection follows predictable patterns based on vessel type, location, and stress.

Thin Sheet (0.5mm – 3.0mm)

Typical Uses: Interior cabin panels, ceilings, ductwork, non-structural skins for small boats, protective covers.

Key Consideration: Focus on lightness, easy formability, and cost. Used in low-stress or non-structural applications.

Medium Plate (3.0mm – 10.0mm)

Typical Uses: The most commonly used range. Hull plating and decks for small-to-medium fishing boats, patrol vessels, workboats; hulls and superstructures for yachts; side plates and bulkheads for high-speed ferries.

Key Consideration: This range offers the best balance of strength, weight, cost, and workability. It is the first choice for most hull structures.

Heavy Plate (10mm – 50mm and above)

Typical Uses: Strength decks and sheer strakes for large commercial ships; armored areas on naval vessels; ramps for ferries; critical load-bearing nodes on offshore platforms.

Key Consideration: Meets extreme load and high-safety requirements. Prioritizes absolute strength, toughness, and impact resistance.

5 Key Factors for Choosing the Correct Thickness

1.  Vessel Type & Rules: Design standards differ greatly. Always follow the minimum thickness rules for your specific vessel and area from the relevant Classification Society (e.g., CCS, DNV, ABS, LR).
2.  Specific Location & Loads: Identify the plate’s purpose. Is it for the bottom (global bending) or the side (local pressure)? Base the decision on structural calculations.
3.  Operating Environment: Sailing in ice, high-salinity zones, or abrasive sandy waters often requires adding extra thickness for corrosion/erosion allowance.
4.  Fabrication Method: Will you use traditional welding or Friction Stir Welding (FSW)? Different methods have specific requirements for parent metal thickness and joint design.
5.  Total Cost of Ownership: Find the most economical solution that meets all safety and performance needs. Consider material cost, fabrication difficulty, and long-term maintenance.

Mingtai Aluminum: Your Reliable Marine Material Partner

You don’t have to make this complex choice alone. Mingtai Aluminum supplies marine-grade plates (like 5083-H116/H321) that meet international standards and carry major classification society approvals. We offer a complete range of thicknesses, from sheet to heavy plate, with consistent, reliable quality for harsh marine environments.

Our Advice: Share your project details, drawings, or specifications with us. Mingtai’s technical team can provide in-depth material selection support, including analysis of suitable thickness, to help you make the most precise and cost-effective decision.

> Build your marine vision on a solid foundation. Mingtai Aluminum supplies a full range of high-quality marine grade aluminum plate thickness options. Our reliable materials and complete specifications help you meet exact project needs and master harsh seas.

FAQ: Marine Aluminum Plate Thickness

Q1: What thickness is most common for small yachts or workboats?

A1: Hull and deck plates typically range from 4mm to 6mm (5083 alloy). Internal structures may use 3mm-4mm. Always follow the designer’s specifications.

Q2: Are there thickness tolerances for marine plate?

A2: Yes. Tolerances are strict and governed by standards like ASTM B928. Precise control is critical for safety and quality.

Q3: Is thicker plate more corrosion-resistant?

A3: Not directly. Alloy and temper (e.g., H116) determine corrosion resistance. Thickness provides a “corrosion allowance” for longer structural life.

Q4: How do I find the right thickness per Class Rules?

A4: Class rules (ABS, DNV, etc.) provide formulas based on vessel dimensions to calculate minimums. Your final design must meet or exceed these values.

Q5: Can I use thinner plate in some areas to save cost?

A5: Not recommended. The hull is an integrated structure. Thinning can alter stress and create risk. Optimize cost in other areas after safety is assured.
