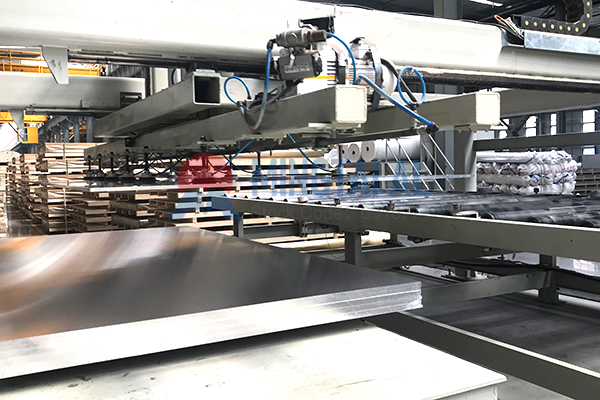

As the “blood vessels” of electrical systems, busbars directly impact the efficiency and safety of the entire setup. In fields like renewable energy, power distribution, and rail transportation, a high-quality aluminum busbar sheet is crucial for reducing energy consumption and enhancing system stability. However, with numerous aluminum plate options available, how do you scientifically select the right material while balancing key factors like conductivity, strength, and workability? This guide provides a systematic analysis of selection criteria to help you make precise decisions.
Conductivity is the core metric for evaluating busbar efficiency, typically measured by the International Annealed Copper Standard (IACS%). Pure aluminum offers about 61% IACS, but adjustments are needed based on alloy composition:
– High-purity aluminum series (e.g., 1060/1350): Conductivity exceeds 61% IACS, ideal for applications requiring maximum conductivity.
– 3003 alloy: Approximately 40% IACS, offering a balance between conductivity and strength.
– 6000 series alloys (e.g., 6061): Conductivity around 40–43% IACS, sacrificing some conductivity for higher strength.
Busbars must withstand bolt pressure, mechanical vibration, and their own weight, making mechanical strength a critical consideration:
– Soft temper (O-temper) aluminum plates offer lower strength but excellent workability.
– Hard temper (H-temper) plates provide higher strength, suitable for applications requiring structural support.
– 6061-T6 aluminum can achieve tensile strengths above 290 MPa, approximately 1.5 times that of 3003 alloy.
Busbars often require secondary processes like punching and bending:
– O-temper material: High elongation, suitable for complex forming.
– H14/H18 tempers: Increasing strength but requiring larger bend radii.
– Heat-treatable alloys: Such as 6061, offering optimal workability after solution heat treatment.
– 3003 alloy, with manganese content, offers better corrosion resistance than pure aluminum.
– 6000 series alloys, with magnesium and silicon additives, provide enhanced corrosion resistance.
– Surfaces should be flat and defect-free to ensure tight contact.
|
Alloy |
Conductivity (%IACS) |
Typical Tensile Strength |
Key Features |
Applications |
|
1060 |
≥61 |
65–95 MPa |
Excellent conductivity, soft and easy to work |
Static high-current connections |
|
1350 |
≥61 |
85–110 MPa |
Electrical-grade, strict purity control |
Transformer and reactor windings |
|
3003 |
~40 |
145–195 MPa |
Balanced performance, cost-effective |
General-purpose power distribution |
|
6061 |
40–43 |
290–310 MPa |
High strength, good corrosion resistance |
Battery packs, outdoor equipment |
– O-temper for complex forming: Multi-angle bending, deep drawing.
– H14/H24 for general use: Balances strength and formability.
– H18 for high rigidity: Simple flat busbars with minimal bending.
According to IEEE 635 standards, the current-carrying capacity of aluminum busbars can be approximated as:
Current capacity (A) ≈ K × Cross-sectional area (mm²)
The K-value depends on cooling conditions and ambient temperature, typically ranging from 1.0 to 1.3.
– Thin and wide: Larger surface area for heat dissipation, suitable for natural cooling.
– Thick and narrow: Higher mechanical strength, ideal for space-constrained installations.
– Recommended ratio: Width-to-thickness ratios typically range from 10:1 to 30:1.
– Thickness tolerance of ±0.05 mm ensures uniform bolt connection pressure.
– Flatness of <0.5 mm/m prevents poor contact.
– Edge straightness affects assembly accuracy for spliced busbars.
High-quality busbar materials rely on strict process control:
Choosing a professional raw material supplier is the first step to success. With over 20 years of experience in aluminum plate and strip production, Mingtai Aluminum provides a full range of busbar-specific materials—from 1060 to 6061 alloys—ensuring precise composition, strict tolerances, and stable performance. We are your reliable foundation for electrical connection solutions.
Q: How do I balance conductivity and strength?
A: Prioritize based on application. Choose high-conductivity alloys (e.g., 1060) for static connections, and high-strength alloys (e.g., 6061) for mechanical stress. Design adjustments can also help.
Q: Does the busbar surface need special treatment?
A: Base material requires a clean surface. Downstream processors typically apply plating or coatings. We ensure defect-free surfaces for further processing.
Q: What is the minimum order quantity?
A: Varies by specification and alloy. Common alloys offer more flexibility. Contact us with details for precise information.
Q: How can I verify conductivity?
A: We provide test reports for each batch. You may also use portable testers or third-party labs.
Q: How do welding properties vary by alloy?
A: Pure aluminum welds best, 3003 offers good weldability, while 6000-series requires controlled parameters. Testing is recommended before production.
