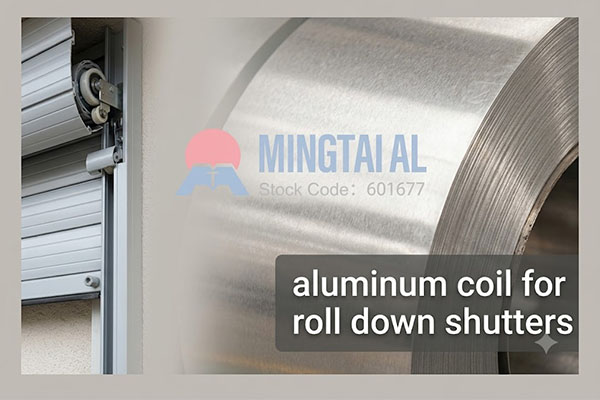

aluminum coil for roll down shutters

When sourcing aluminum coil for roll down shutters, the quality of your final product largely depends on the coil you choose. As the base material for shutter slats, the coil goes through punching, roll‑forming, and bending – any hidden defect like uneven thickness, surface contamination, or inconsistent hardness will magnify in the finished shutter. Poor coil quality leads to warped slats, premature corrosion, or even structural failure. So what really matters when you buy? Let’s break it down.

Which Alloy Fits Your Application?

Different alloys serve different purposes.

– 1000 series (1050, 1060, 1100) – over 99% pure aluminium. They offer excellent formability and a bright surface, ideal for decorative indoor shutters where appearance counts.

– 3000 series (3003, 3004, 3005, 3105) – alloyed with manganese. They deliver higher strength and rigidity (especially in H24 temper), making slats more durable and resistant to denting. This is the workhorse for most commercial and residential shutters.

– 5000 series (5052) – contains magnesium, giving outstanding corrosion resistance. Perfect for coastal areas or high‑humidity environments.

Practical advice: For standard garage or indoor shutters, 3003 offers the best balance of strength and formability at a reasonable cost. If your shutters face salt spray or constant outdoor exposure, choose 5052 – it outperforms 3003 by a wide margin in corrosive conditions. For projects that require a premium painted finish, 3105 is an excellent substrate because its surface accepts coatings more evenly.

Thickness and Dimensions – Get the Numbers Right

Typical coil thickness ranges from 0.2 mm to 1.2 mm, with 0.3‑0.4 mm for light‑duty shutters and heavier gauges for industrial doors. Standard master width is 1240 mm, and custom widths from 100 mm to 1650 mm are available. Coil outer diameter is usually 1200 mm, with inner diameters of 105, 405, or 505 mm.

Here are the key numbers to remember:

1. Thickness: 0.2–1.2 mm (lighter for small garages, thicker for commercial use)

2. Master width: 1240 mm standard; custom range 100–1600 mm

3. Outer / inner diameter: 1200 mm outer; inner diameters 105, 405, or 505 mm

One factor many buyers overlook: slitting precision. You buy a master coil and slit it into narrower strips for your roll‑forming line. If your supplier’s slitting tolerances are loose – width deviation, burrs, or poor edge quality – your production efficiency drops and material waste increases. Always ask about their slitting equipment and quality control.

Performance and Supplier Evaluation – Beyond the Price Tag

Corrosion resistance is where aluminium truly shines – it outlasts galvanised steel by several times in humid or industrial atmospheres. High‑quality 3000‑ and 5000‑series coils resist rain, UV, and pollutants, extending shutter life by 50% or more compared to traditional materials. But base material quality is only half the story. The coil surface must be free of scratches, oil stains, and impurities – otherwise, even the best PE or PVDF coating won’t adhere properly.

When vetting suppliers, don’t just compare unit prices. Check these essentials:

– Mill Test Certificates (MTCs) – can they provide batch‑traceable certificates?

– Compliance – do their products meet ASTM or EN standards?

– Delivery reliability – what’s their on‑time delivery record and response time?

– Customisation flexibility – can they adjust thickness and width to your exact needs?

A supplier that ticks all these boxes saves you headaches down the road.

Market Trend – Why Now Is the Right Time to Act

The global roll‑down shutter market is growing fast, and aluminium is taking the lead. Consider these trends:

• Market value: $9.01 billion in 2025, projected to reach $16.7 billion by 2034 (7.1% CAGR).
• Aluminium shutters already hold over 65% of the market segment.
• Why aluminium? It’s 30% lighter than steel, offers superior corrosion resistance, and is fully recyclable.

This momentum means that choosing a dependable coil supplier today gives you a competitive edge for years to come.

Choosing the right coil is a systematic decision – from alloy and gauge to surface integrity and supplier capability. Every detail influences your shutter’s final performance and longevity. Get it right, and your shutters start with a clear advantage.

For your next order, Mingtai Aluminum offers a full range of alloys (1xxx to 8xxx series) with custom dimensions, backed by years of export experience to the US, Canada, Korea, and beyond. When you need reliable aluminum coil for roll down shutters, they are a partner worth considering.

FAQ

Q1: What alloy is best for outdoor roll down shutters?

A: 3000 series (like 3003 or 3105) and 5000 series (5052) – choose 5052 if the site is near the sea.

Q2: What thickness range should I order?

A: Typically 0.2‑1.2 mm; light doors use 0.3‑0.4 mm, heavy‑duty doors need thicker gauges.

Q3: How can I verify coil quality before purchase?

A: Request MTCs with batch traceability and consider third‑party inspections like SGS or BV.

Q4: Can I get non‑standard widths?

A: Yes, custom widths from 100 mm to 1650 mm are available from most reliable suppliers.
