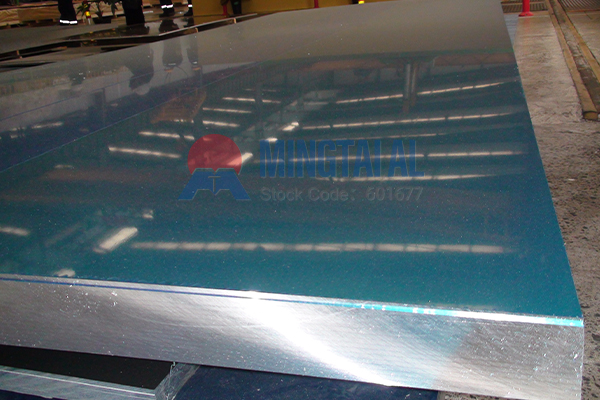

When manufacturers look for aluminum plate for jig and fixture, they are usually trying to find a material that can support accurate positioning, repeated operations, and efficient machining. Jigs and fixtures are essential in modern production because they help ensure consistency, reduce human error, and improve overall productivity.
To perform well in these roles, the material used must offer a balance of dimensional stability, machinability, and structural support—without making the tooling unnecessarily heavy or difficult to handle.
Aluminum plate is commonly selected for jig and fixture manufacturing because it meets several practical requirements at once:
* Lightweight structure – easier handling, installation, and adjustment
* Excellent machinability – suitable for drilling, milling, and complex shaping
* Efficient production – reduces processing time and tool wear
* Cost-effective solution – balances performance and manufacturing cost
Compared to heavier materials, aluminum allows faster fabrication and more flexible design changes, which is especially valuable in custom tooling and small-batch production.
Different industries use aluminum plates in a wide range of tooling scenarios. The most common applications include:
* Welding fixtures for holding parts in fixed positions
* Assembly jigs for repeatable component installation
* Inspection fixtures for quality control and measurement
* Positioning plates in automated production lines
* Drilling and machining bases for precision operations
Each application places different demands on the material. For example, inspection fixtures often require higher flatness, while welding jigs may focus more on structural stability.
Choosing the right plate is not just about availability—it is about matching material properties with application needs.
Important factors include:
Thicker plates generally provide better support and reduce deformation during use.
These directly affect fixture accuracy and assembly consistency.
Different alloys influence strength, workability, and durability.
For example, alloys like 5052, 6061, and 6082 are commonly considered for jig and fixture applications due to their balanced performance.
Uniform surfaces help maintain stable performance during repeated operations.
A mismatch in any of these factors can lead to increased adjustment time, reduced accuracy, or shorter tooling life.
Instead of choosing based on habit, it is more effective to evaluate your actual working conditions:
* For lightweight tooling, prioritize ease of handling and machining
* For high-load fixtures, focus on rigidity and thickness
* For precision applications, ensure better flatness and tighter tolerances
* For high-efficiency production, consider machinability and consistency
In practice, the “best” material is not universal—it depends on how the fixture will be used and how often it will be repeated.
From a procurement perspective, reliability is just as important as specifications.
A good supplier should be able to provide:
* Stable plate quality across batches
* Flexible size and thickness options
* Consistent dimensional accuracy
* Reliable delivery for ongoing production needs
Ignoring these factors may lead to production delays or inconsistent tooling performance, especially in long-term projects.
If you are evaluating aluminum plate for jig and fixture applications, Mingtai Aluminum can provide stable and consistent material solutions to support your production needs.
1. What is aluminum plate for jig and fixture used for?
It is mainly used to manufacture tooling that helps position, hold, or guide parts during production processes.
2. Why choose aluminum instead of steel for fixtures?
Aluminum is lighter and easier to machine, which improves efficiency in many tooling applications.
3. What factors are most important when selecting aluminum plate?
Thickness, flatness, tolerance, and alloy type are the key considerations.
4. Can aluminum plate be used for precision fixtures?
Yes, as long as the material meets the required dimensional accuracy and stability standards.
