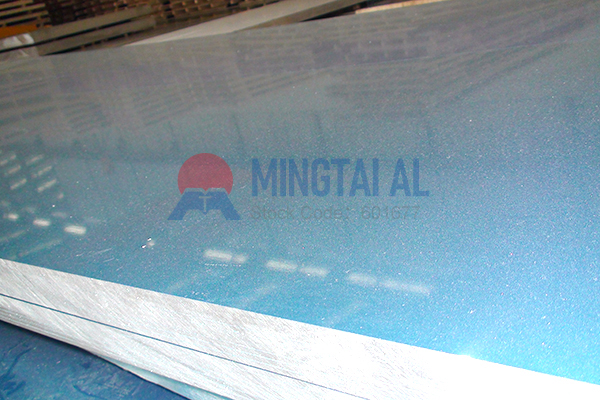

Choosing the right aluminum plate for tooling plate applications is essential for ensuring performance, durability, and machining efficiency in industrial environments. Tooling plates are widely used as base materials in molds, fixtures, and precision equipment, which means the aluminum selected must offer reliable mechanical properties, stable dimensions, and consistent quality across batches.
A tooling plate is a flat metal plate used in manufacturing and mechanical processes to support, position, or secure components. It plays a critical role in ensuring accuracy and repeatability in production.
Typical requirements for tooling plates include:
* High flatness for precision alignment
* Good dimensional stability during use
* Adequate strength to withstand loads
* Easy machinability for drilling, milling, or cutting
* Resistance to corrosion in various environments
Because of these requirements, material selection becomes a key factor in determining the overall performance of the tooling system.
Aluminum plates are commonly selected for tooling applications due to their balanced performance and cost advantages. Compared to other metals, aluminum offers a combination of properties that make it suitable for a wide range of industrial uses.
1. Lightweight yet strong
Aluminum has a lower density than steel, making it easier to handle and install, while still maintaining sufficient strength for structural applications.
2. Excellent machinability
It can be easily cut, drilled, and milled, which helps reduce processing time and manufacturing costs.
3. Stable performance
With proper alloy selection, aluminum plates can maintain dimensional stability during operation.
4. Corrosion resistance
Aluminum naturally forms a protective oxide layer, which helps extend service life in many environments.
5. Cost efficiency
It provides a good balance between performance and price, especially for large-scale industrial use.
Different aluminum alloys offer different performance characteristics. Selecting the right alloy depends on the specific application requirements.
* 5083 aluminum plate
Known for its excellent corrosion resistance and relatively high strength, suitable for demanding environments.
A versatile alloy with balanced strength, machinability, and availability, widely used in industrial applications.
Offers good processing performance and is often used where moderate strength is sufficient.
Provides very high strength, making it suitable for applications requiring superior load-bearing capacity.
Instead of choosing the highest-grade material, it is more practical to match the alloy with the actual working conditions of the tooling plate.
When selecting materials for tooling plates, buyers often focus on more than just price. The following factors are commonly considered:
1. Thickness
Thicker plates are typically used for heavy-duty applications, while thinner plates may be suitable for lighter structures.
2. Flatness
Flatness is critical for precision work. Poor flatness can affect alignment and machining accuracy.
3. Mechanical properties
Strength and hardness should match the load and usage frequency of the application.
4. Size and tolerance
Accurate dimensions and tight tolerances are important for ensuring compatibility with equipment and assemblies.
5. Supply consistency
Stable quality across batches is essential for long-term industrial projects.
Aluminum tooling plates are used in a variety of industrial scenarios. Some common applications include:
* Mold base plates
* Fixture and jig plates
* Machine support platforms
* Assembly and positioning tables
* Precision equipment base structures
These applications often require materials that can maintain performance over time while supporting repeated use and machining operations.
Selecting the appropriate aluminum material for tooling purposes involves balancing performance requirements with cost considerations.
Here are some practical selection tips:
* If higher strength is required → consider stronger alloys such as 7075
* If general industrial use is needed → 6061 is often a reliable choice
* If corrosion resistance is a priority → 5083 may be more suitable
* If machining efficiency is important → choose alloys with good machinability
In many cases, working with an experienced supplier can help ensure that the selected material meets both technical and production requirements.
For many industrial applications, aluminum remains a reliable and efficient material choice for tooling systems. A well-selected aluminum plate for tooling plate can improve machining performance, enhance durability, and support long-term production stability. Mingtai Aluminum provides consistent-quality aluminum plates suitable for various industrial applications.
What is aluminum plate for tooling plate used for?
It is commonly used in molds, fixtures, machine platforms, and industrial support structures.
Which aluminum alloy is best for tooling plate?
Common options include 5083, 6061, and 7075, depending on strength, corrosion resistance, and machinability requirements.
What should be considered when selecting tooling plate material?
Key factors include thickness, flatness, mechanical properties, dimensional tolerance, and supply stability.
Is aluminum suitable for precision tooling applications?
Yes, when the correct alloy and specifications are selected, aluminum can meet many precision tooling requirements.
