Roofing aluminum coil has emerged as a core material for metal roofing systems due to its lightweight properties, corrosion resistance, and ease of fabrication. From commercial complexes and industrial plants to high-end residences, its applications continue to expand. However, with a wide array of specifications available, how can buyers determine the most suitable option? This article explores trending specifications across four key dimensions: thickness, width, alloy composition, and surface treatment.
The thickness of a roofing aluminum coil directly impacts its load-bearing capacity and service life. For standard construction scenarios, the 0.6mm–1.2mm range is the most popular. For instance, lightweight roofing systems in industrial plants often use 0.8mm–1.0mm coils, which provide sufficient weather resistance while keeping material costs low. In contrast, curved or complex architectural designs in high-end commercial buildings typically require thicker 1.0mm–1.2mm coils for structural stability. Notably, some suppliers now offer 0.6mm coils with tensile strength comparable to conventional 1.0mm products through optimized alloy formulations, further expanding lightweight applications.
The width of roofing aluminum coils must balance transport efficiency and on-site installation. Currently, 1000mm–1200mm widths dominate the market, as they meet most modular roofing requirements while minimizing material waste from cutting. For example, 1200mm-wide coils are preferred in Southeast Asian industrial projects due to their compatibility with local purlin spacing, whereas 1000mm-wide coils are widely adopted in Europe for easier transport through tunnels and other constrained routes.
The alloy composition of roofing aluminum coils determines their weather resistance and workability. The 3003 (aluminum-manganese) and 3004 (aluminum-magnesium-manganese) series stand out for their superior anti-corrosion properties. The 3004 series aluminum, enhanced with magnesium, offers higher tensile strength, making it ideal for coastal or high-humidity regions. Meanwhile, the 3003 series performs exceptionally in cold climates due to its low-temperature toughness and long-term stability. Both alloys can be adjusted to meet varying corrosion resistance needs.
Surface treatments significantly affect the aesthetics and lifespan of roofing aluminum coils. Fluorocarbon (PVDF) coatings outperform others in UV resistance, chemical resilience, and self-cleaning properties. Their high-bond-energy fluorine-carbon structure resists UV degradation, while low surface tension reduces dust adhesion, lowering maintenance frequency. Unlike alternatives, PVDF coatings resist chalking, fading, and cracking over time, making them ideal for projects demanding long-lasting aesthetics. For budget-conscious projects, polyester (PE) coatings remain a cost-effective choice for mid- to low-end markets.

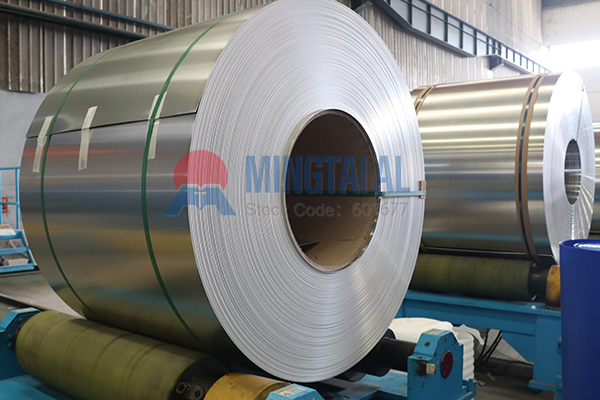

As a leading aluminum processor in China, Henan Mingtai Aluminum offers roofing aluminum coils in thicknesses from 0.5mm–2.0mm and widths from 800mm–1600mm. Its proprietary 3004H24 alloy coils, optimized for magnesium-manganese ratios, deliver higher tensile strength without compromising weight, making them suitable for large public infrastructures like airport terminals and high-speed rail stations. Mingtai also provides PVDF, PE, and custom-color coatings tailored to diverse climatic requirements worldwide.
Selecting the right roofing aluminum coil involves evaluating environmental conditions, budget, and construction needs. Buyers should partner with full-chain suppliers for end-to-end support—from material selection to installation guidance—to minimize risks and maximize project value.
